Hyundai Santa Cruz: Propeller Shaft Assembly / Propeller Shaft

- Components

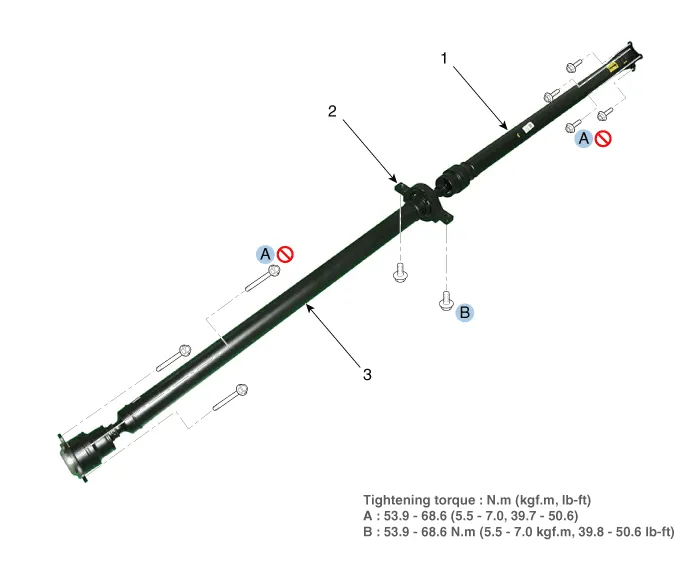

1. Front propeller shaft
2. Center bearing bracket

3. Rear propeller shaft


- Removal



• When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).(Refer to General Information - "Lift and Support Points")

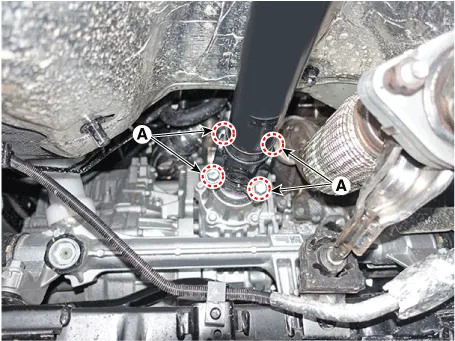

1.After making a match mark on the flange yoke and transaxle companion, remove the propeller shaft mounting bolts (A).

Tightening torque : 53.9 - 68.6 N.m(5.5 - 7.0 kgf.m, 39.7 - 50.6 lb-ft)



• Use a hexagon socket to prevent damage to the head when removing and installing bolts.

• Mark the location and direction of bolt and washer before removing the propeller shaft.

• Installing the bolt and washer differently from the initial state can result in unbalanced propeller shaft causing abnormal vibration of propeller shaft at high speed.

• If abnormal vibration and noise occur at high vehicle speeds after replacing propeller shaft with a new one, balance the propeller shaft with a balancing machine.

• The bolt is a special bolt applied with bond, so do not reuse.

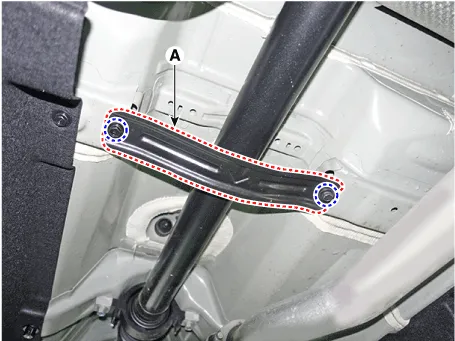

2.Remove the bracket (A) after loosening the mounting bolts.

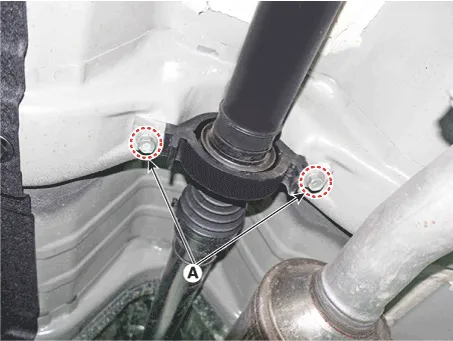

3.Loosen the center bearing bracket mounting bolts (A).

Tightening torque : 53.9 - 68.6 N.m(5.5 - 7.0 kgf.m, 39.7 - 50.6 lb-ft)



• Mark the location and direction of bolt and washer before removing the propeller shaft.

• Installing the bolt and washer differently from the initial state can result in unbalanced propeller shaft causing abnormal vibration of propeller shaft at high speed.

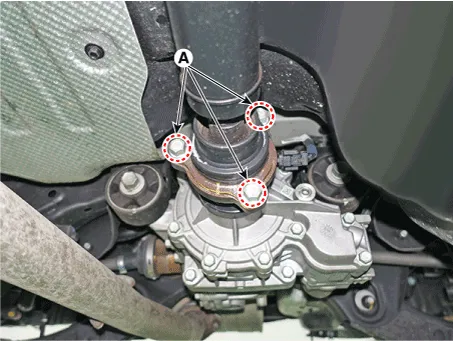

4.After making a match mark on the constant velocity joint and rear differential companion, remove the propeller shaft mounting bolts (A).

Tightening torque : 53.9 - 68.6 N.m(5.5 - 7.0 kgf.m, 39.7 - 50.6 lb-ft)



• Use a hexagon socket to prevent damage to the head when removing and installing bolts.

• Mark the location and direction of bolt and washer before removing the propeller shaft.

• Installing the bolt and washer differently from the initial state can result in unbalanced propeller shaft causing abnormal vibration of propeller shaft at high speed.

• If abnormal vibration and noise occur at high vehicle speeds after replacing propeller shaft with a new one, balance the propeller shaft with a balancing machine.

• The bolt is a special bolt applied with bond, so do not reuse.

- Installation

1.To install, reverse the removal procedures.

    Propeller Shaft Assembly
    ...

    Differential Carrier Assembly
    ...
