Hyundai Santa Cruz: Rear Bumper / Rear Bumper beam Assembly

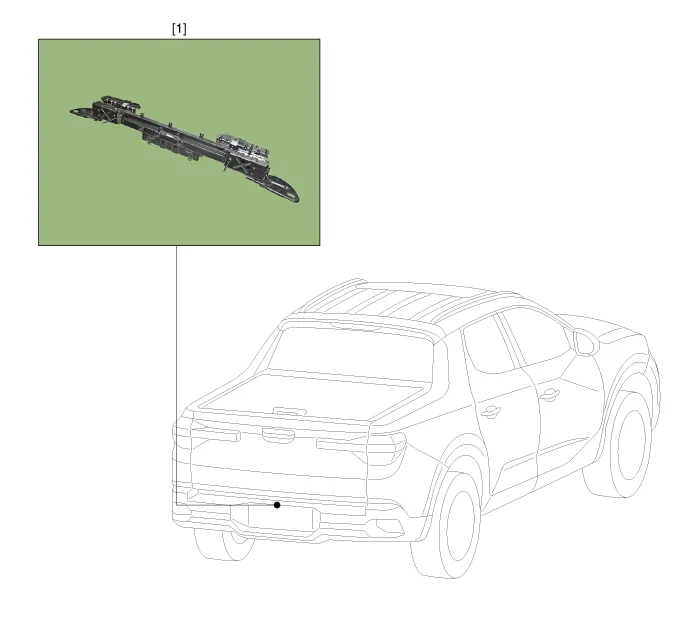

- Component Location

1. Rear bumper beam assembly


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the bumper cover and panels.

1.Remove the rear bumper assembly.(Refer to Rear Bumper - "Rear Bumper Assembly")

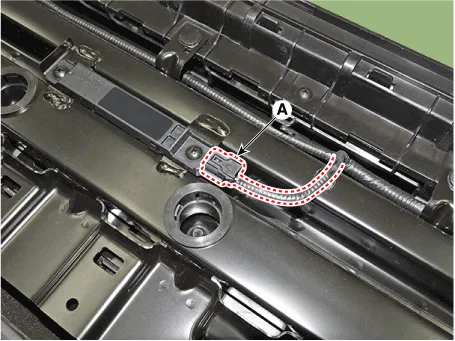

2.Disconnect the antenna connector (A).

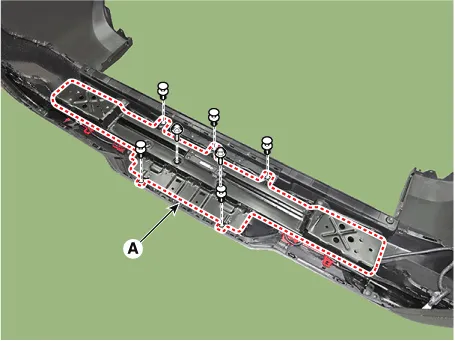

3.Loosen the mounting clips, bolts and then remove the rear bumper beam assembly (A).

4.To install, reverse removal procedure.



• Make sure the connector is plugged in properly.

• Replace any damaged clips (or pin-type retainers).
