Setting features

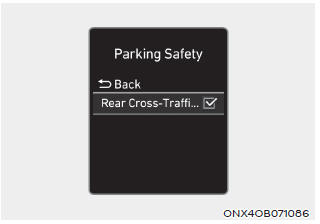

Rear Cross-Traffic Safety
With the engine on, select ‘Driver Assistance>Parking Safety>Rear Cross-Traffic Safety’ from the Settings menu to turn on Rear Cross-Traffic Collision- Avoidance Assist and deselect to turn off the function.
WARNING
When the engine is restarted, Rear Cross-Traffic Collision-Avoidance Assist will always turn on. However, if ‘Off’ is selected after the engine is restarted, the driver should always be aware of the surroundings and drive safely.
Information
Settings for Rear Cross-Traffic Safety system include Rear Cross-Traffic Collision Warning and Rear Cross-Traffic Collision-Avoidance Assist.

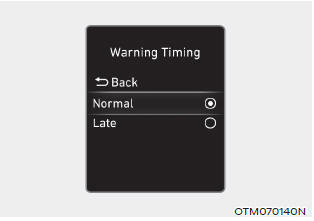

Warning Timing
With the engine on, select 'Driver Assistance>Warning Timing' from the Settings menu to change the initial warning activation time for Rear Cross- Traffic Collision- Avoidance Assist.
When the vehicle is first delivered, Warning Timing is set to ‘Normal’. If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.

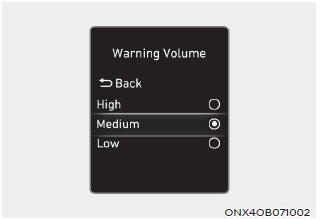

Warning Volume
With the engine on, select 'Driver Assistance>Warning Volume' from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Rear Cross-Traffic Collision- Avoidance Assist.
If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.
CAUTION
Information
If the engine is restarted, Warning Timing and Warning Volume will maintain the last setting.
