Hyundai Santa Cruz: Rear Door / Rear Door Inside Handle

- Replacement

1.Disconnect the negative ( - ) battery terminal.

2.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")

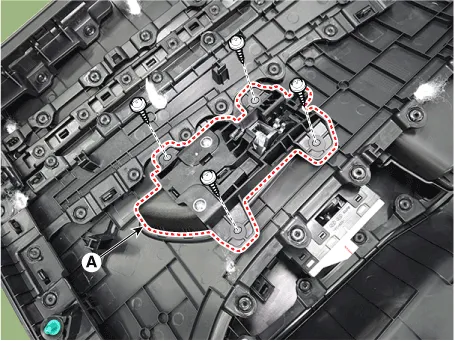

3.Loosen the mounting screws and remove the rear door inside handle (A).

4.To install, reverse removal procedure.



• Make sure the door locks / unlocks and opens / closes properly.
