Hyundai Santa Cruz: Rear Seat / Rear Seat Assembly

- Component Location

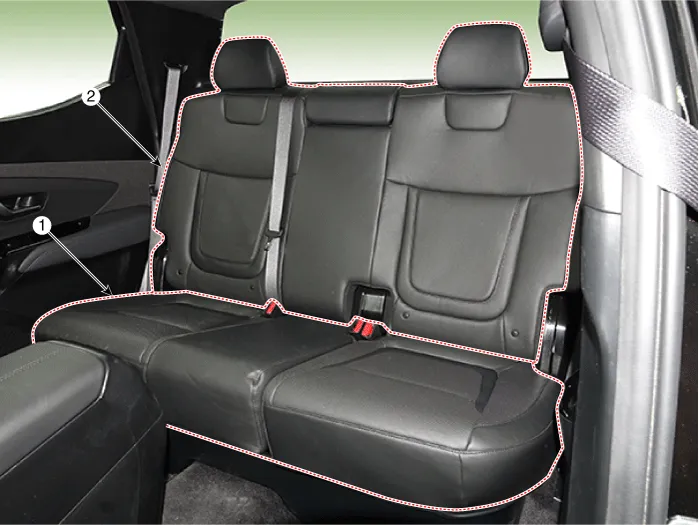

1. Rear seat cushion assembly
2. Rear seat back assembly


- Replacement



• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the rear seat assembly.

[Rear seat cushion assembly]

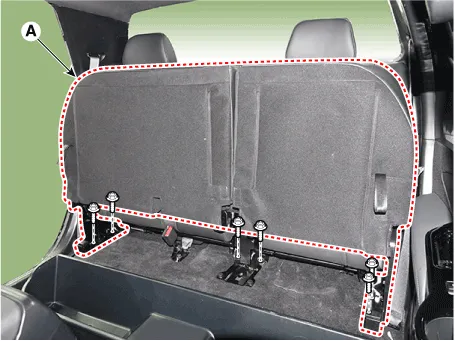

1.Loosen the mounting bolts, remove the rear seat cushion assembly (A).

Tightening torque :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m , 36.2 - 47.0 lb-ft)

2.To install, reverse removal procedure.

[Rear seat back assembly]

1.Remove the rear seat cushion assembly.

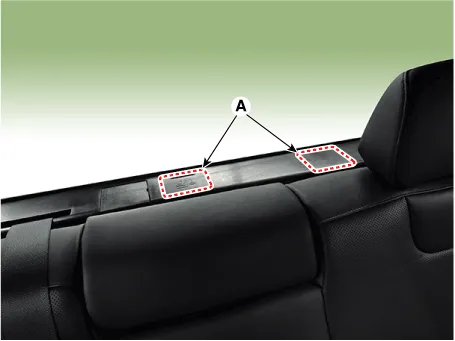

2.Remove the patition upper trim cover (A).

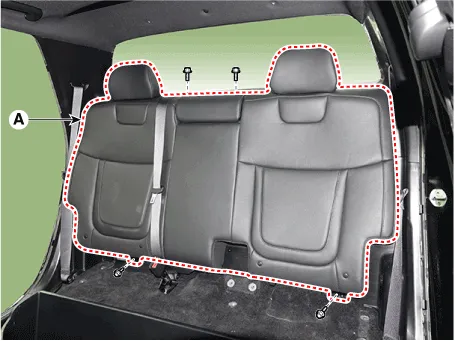

3.Loosen the mounting bolts, remove the rear seat back assembly (A).

Tightening torque :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m , 36.2 - 47.0 lb-ft)

4.To install, reverse removal procedure.
