Hyundai Santa Cruz: Fuel Delivery System / Release Residual Pressure in Fuel Line
• There may be some residual pressure even after "Release Residual Pressure in Fuel Line" work, so cover the hose connection with a shop towel to prevent residual fuel from spilling out before disconnecting any fuel connection.
1.Turn the ignition switch OFF and disconnect the battery (-) cable.

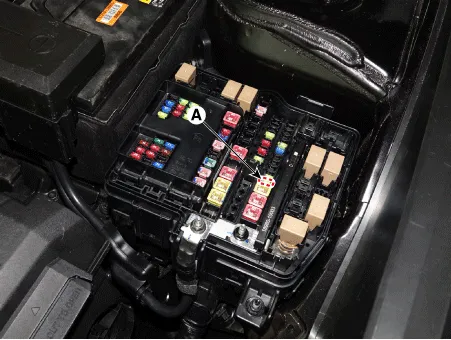

2.Remove the fuel pump fuse (A).
3.Connect the battery (-) cable.
4.Start the engine and let idle, and then turn the ignition switch OFF after the engine has stopped on its own.
5.Disconnect the battery (-) cable, and then install the fuel pump fuse.
6.Connect the battery (-) cable.
7.Delete the Diagnostic Trouble Code (DTC) related the fuel pump fuse with the diagnostic tool.
• When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
Fuel Pressure Test
- Fuel Pressure Test
1.Release the residual pressure in fuel line.(Refer to Delivery System - "Release Residual Pressure in Fuel Line")
• When removing the fuel pump fuse, a Di ...
Fuel Tank
- Removal
• Be careful not to damage the parts located under the vehicle
(floor under cover, canister, fuel tank) when raising the vehicle using
the lift.(Refer to General ...
