Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Repair procedures

Hyundai Santa Cruz: Rear View Monitor (RVM) / Repair procedures

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the liftgate bed trim.(Refer to Body - "Liftgate Trim")

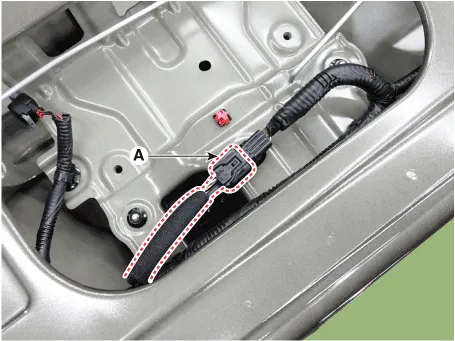

3.Disconnect the liftgate handle connector (A).

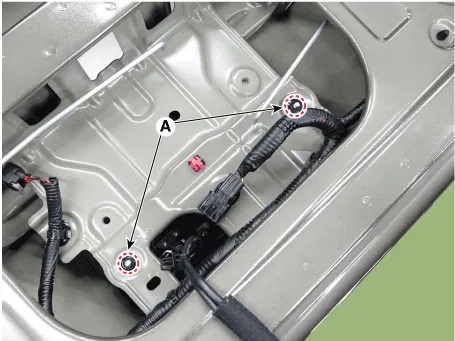

4.Loosen the mounting nuts, remove the liftgate handle assembly (A).

Tightening torque :19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

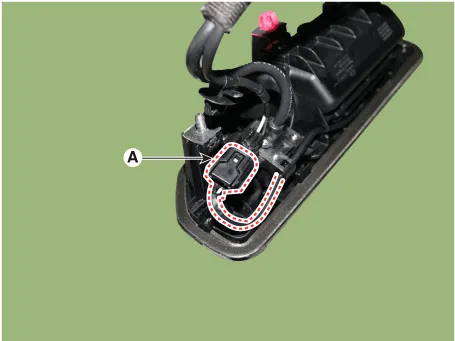

5.Disconnect the liftgate handle connector (A).

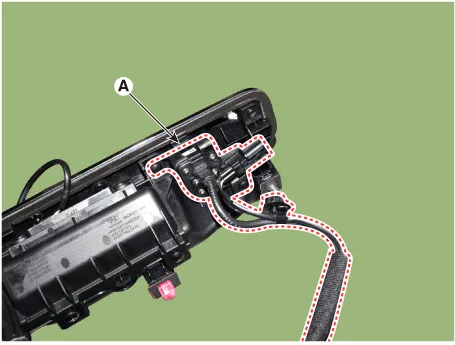

6.Loosen the mounting screws and remove the rear view camera (A).

- Installation

1.To install, reverse the removal procedure.

Schematic Diagrams

- Circuit Diagram ...
