- Removal Interior 1 Antenna



• Take care not to scratch the crash pad and related parts.

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad center panel.(Refer to Body - "Crash Pad Center Panel")

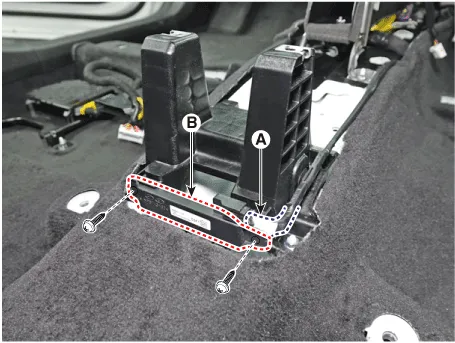

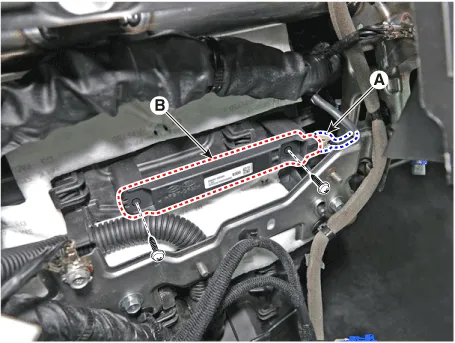

3.Remove the interior 1 antenna (B) after loosening mounting screws and disconnect the connector (A).

Interior 2 Antenna

1.Disconnect the negative (-) battery terminal.

2.Remove the console floor console assembly.(Refer to Body - "Floor Console Assembly")

3.Remove the interior 2 antenna (B) after loosening mounting screws and disconnect the connector (A).

Exterior Bumper Antenna

1.Disconnect the negative (-) battery terminal.

2.Lift the vehicle.

3.Disconnect the rear bumper antenna connector (A).

4.Loosen the mounting screws and remove the rear bumper antenna (A).

Buzzer

1.Disconnect the negative (-) battery terminal.

2.Remove the front left wheel guide.(Refer to Body - "Front Wheel Guard)

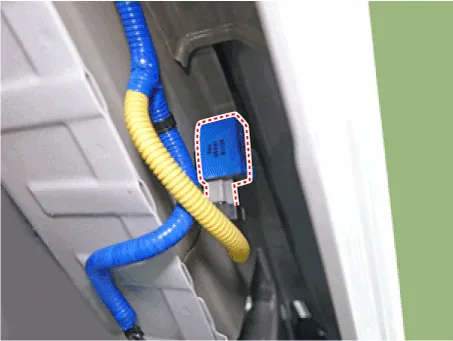

3.Disconnect the connector, then remove the buzzer (A).

Door Antenna

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

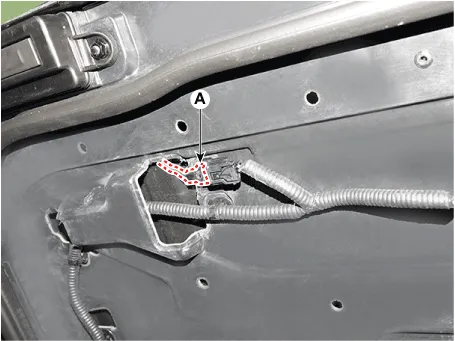

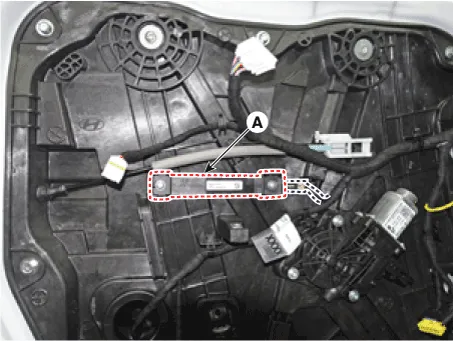

3.Remove the door antenna (A) after disconnecting antenna connector.

Liftgate Open Switch

1.Disconnect the negative (-) battery terminal.

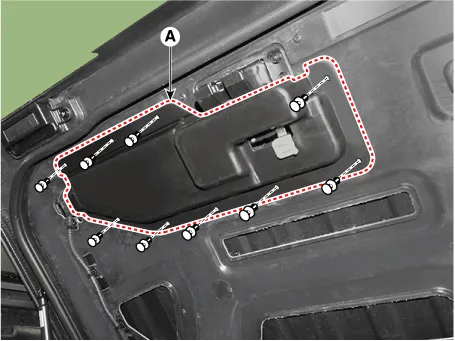

2.Remove the liftgate bed trim assembly.(Refer to Body - "Liftgate Trim")

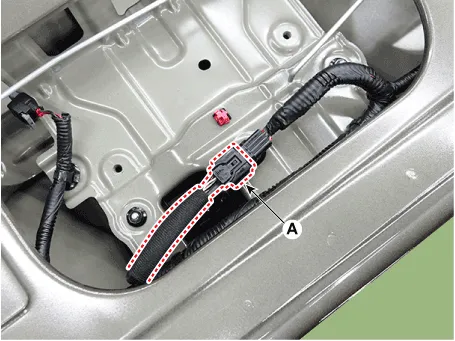

3.Disconnect the liftgate open switch connector (A).

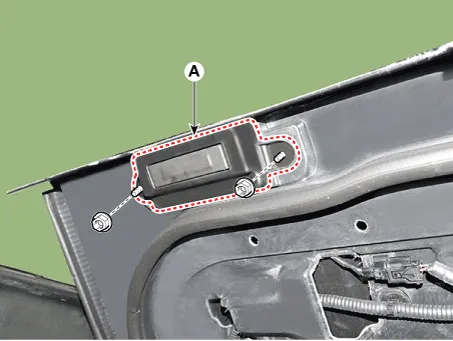

4.Loosen the mounting nuts, clip (B) and remove the liftgate open switch assembly (A).



• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).

Bed Open Switch

1.Disconnect the negative (-) battery terminal.

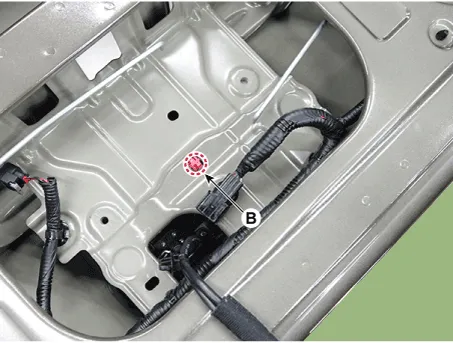

2.Loosen the mounting clips, remove the bed floor latch cover (A).

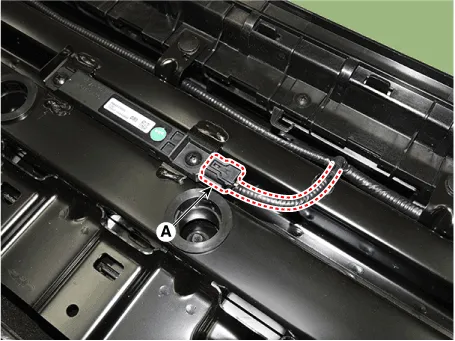

3.Disconnect the bed open switch connector (A).

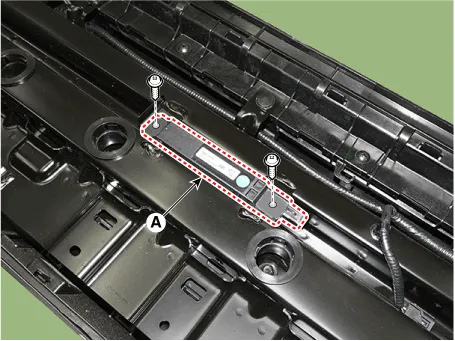

4.Loosen the mounting nuts and remove the bed open switch (A).

Door Outside Handle



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

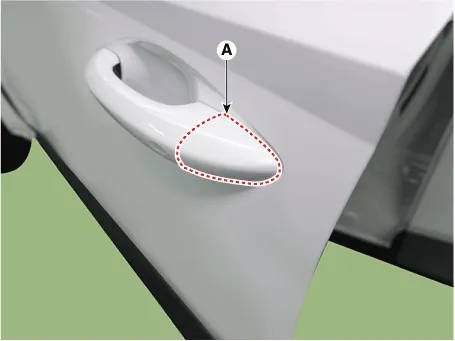

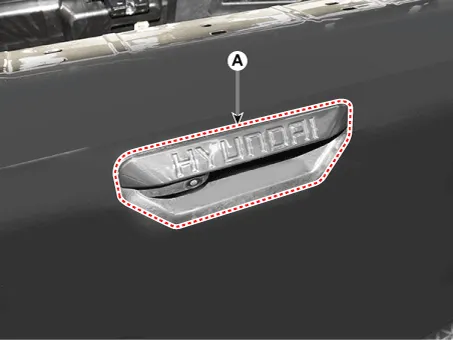

1.Remove the door outside handle cover (A)

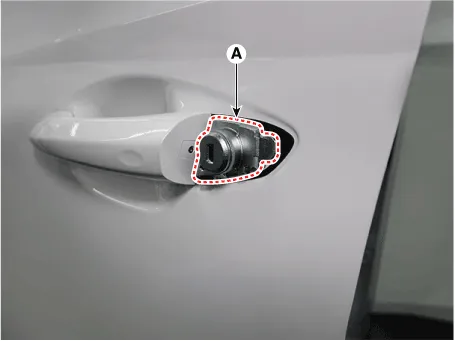

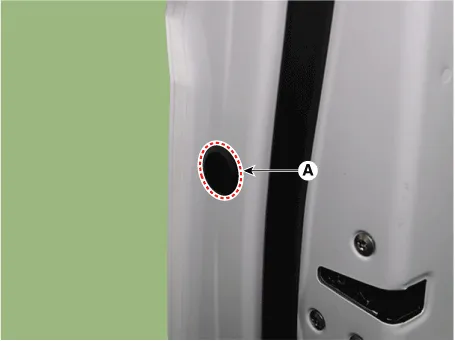

2.Remove the plug hole (A.

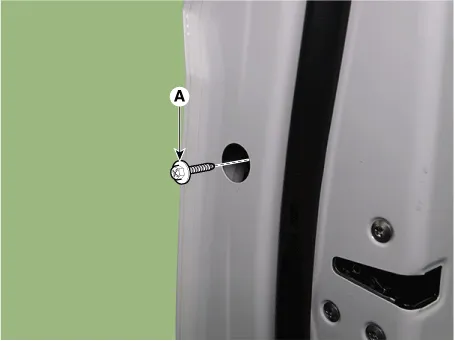

3.Loosen the mounting bolt (A).

4.Remove the front door lock assembly (A).

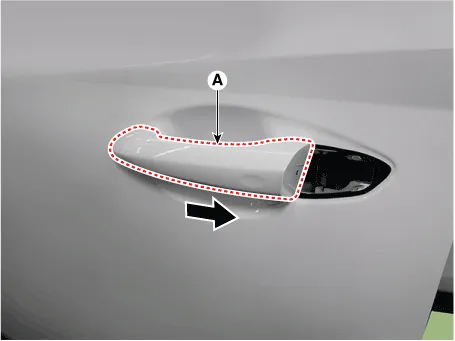

5.Remove the front door outside handle (A) by sliding it forward.

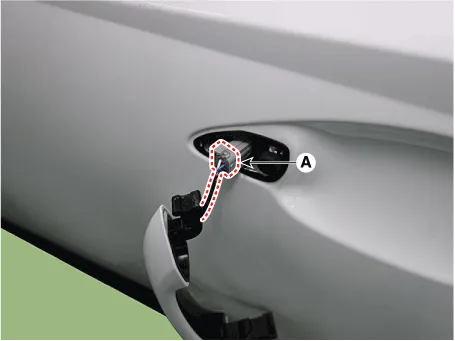

6.Disconnect the front door outside handle connector (A).

- Installation Interior 1 Antenna

1.Install the interior 1 antenna.

2.Install the ecall unit.

3.Install the negative (-) battery terminal and check the smart key system.

Interior 2 Antenna

1.nstall the interior 2 antenna.

2.Install the console rear complete assembly.

3.Install the negative (-) battery terminal and check the smart key system.

Exterior Bumper Antenna

1.Install the exterior bumper antenna.

2.Install the rear bumper assembly.

3.Install the negative (-) battery terminal and check the smart key system.

Buzzer

1.Install the buzzer and connect the connector.

2.Install the front left wheel guide.

3.Install the negative (-) battery terminal and check the smart key system.

Door Outside Handle

1.Install the outside handle.

2.Install the front door trim.

3.Install the negative (-) battery terminal and check the smart key system.

Liftgate Open Switch

1.Install the liftgate open switch.

2.Install the liftgate trim.

3.Install the negative (-) battery terminal and check the smart key system.

Bed Open Switch

1.Install the bed open switch.

2.Install the bed floor latch cover.

3.Install the negative (-) battery terminal and check the smart key system.

Door Antenna

1.Install the door antenna.

2.Install the front door trim.

3.Install the negative (-) battery terminal and check the smart key system.
