Hyundai Santa Cruz: Starting System / Starter Relay

- Inspection

1.Turn ignition switch OFF and disconnect the battery negative (-) terminal.

2.Remove the fuse box cover.

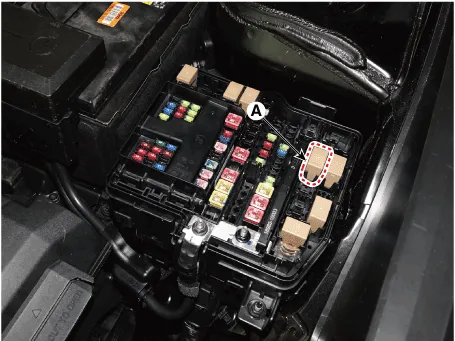

3.Remove the starter relay (A).

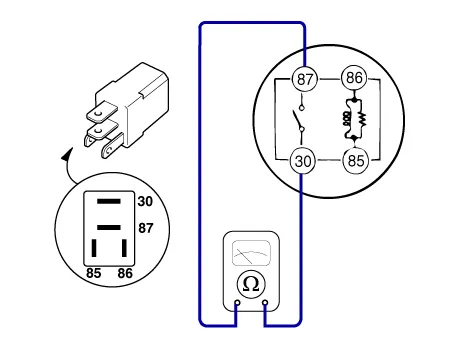

4.Check for continuity between the terminals (30 and 87) using an ohmmeter.

TerminalResistanceMeasure
30 - 871 MΩ or higherIf there is continuity between the terminals, replace the relay.

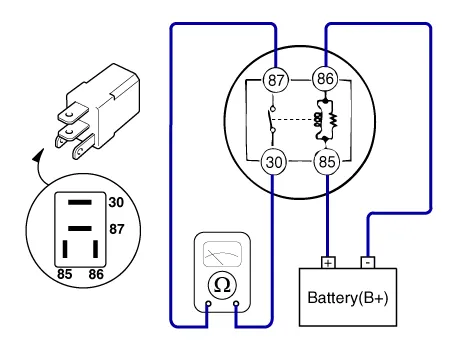

5.Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).

TerminalResistanceMeasure
30 - 871Ω or lessIf there is no continuity between the terminals, replace the relay.

6.Install the starter relay.

7. Install the fuse box cover.
