Hyundai Santa Cruz: Sunroof / Sunroof Sunshade

- Replacement

1.Remove the sunroof assembly.(Refer to Sunroof - "Sunroof Assembly")

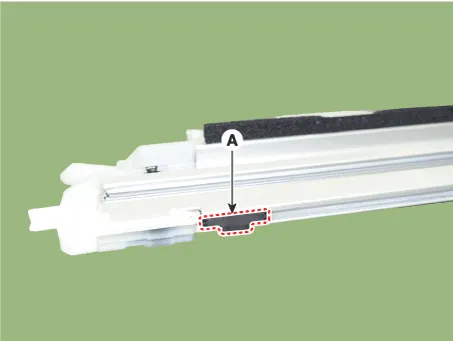

2.Remove the drip rail (A).

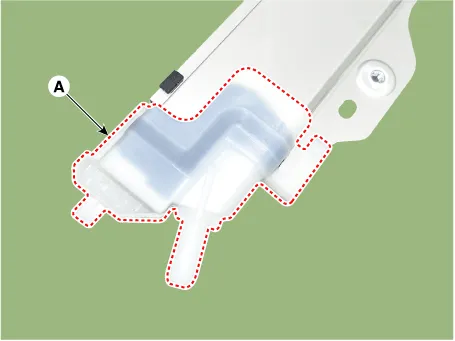

3.Remove the rear drip (A).

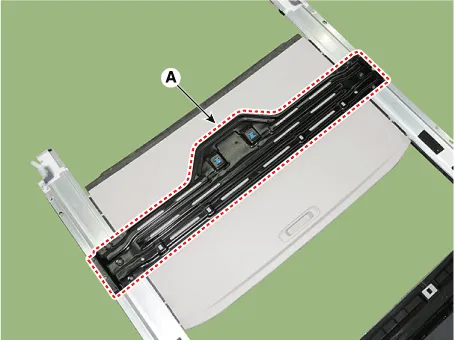

4.Remove the sunshade stoper (A).

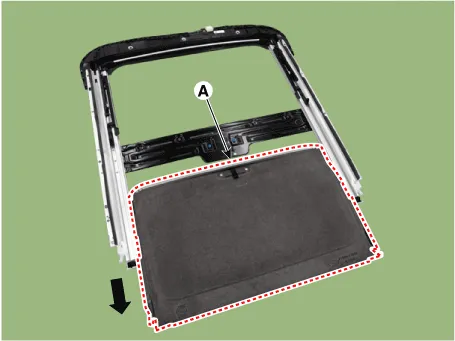

5.Remove the sunroof sunshade (A) by pushing it backward.

6.To install, reverse the removal procedure.
