Hyundai Santa Cruz: Surround View Monitor (SVM) / Surround View Monitor Settings

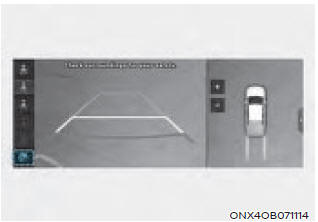

Camera settings

  • You can change Surround View Monitor ‘Display Contents’ or ‘Display Settings’ by touching the setup icon ( ) on the screen while Surround View Monitor is operating, or selecting 'Driver Assistance>Parking Safety>Camera Settings' from the Settings menu while the engine is on.
  • In the Display Contents, you can change settings for ‘Top View Parking Guidance' and ‘Rear View Parking Guidance’.
  • In the Display Settings, you can change the screen’s ‘Brightness’ and ‘Contrast’.

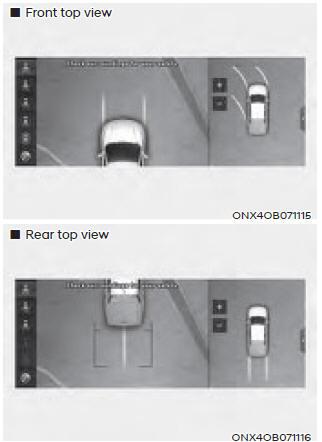

Top View Parking Guidance

  • When the ‘Top View Parking Guidance’ is selected, parking guidance is displayed on the right side of the Surround View Monitor screen.
  • The ‘Top View Parking Guidance’ can be connected with the front top view parking guidance or the rear top view parking guidance.

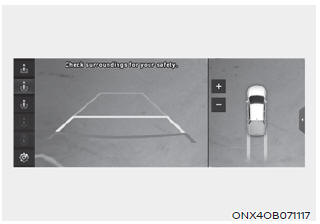

Rear View Parking Guidance

  • When the ‘Rear View Parking Guidance’ is selected, parking guidance is displayed in the rear view.
  • The horizontal guideline of the Rear View Parking Guidance shows the distance of 1.6 ft (0.5m), 3.3 ft (1 m) and 7.6 ft (2.3m) from the vehicle.

Surround View Monitor Auto On

With the engine on, select 'Driver Assistance>Parking Safety>Surround View Monitor Auto On' from the Settings menu to use the function.
