Hyundai Santa Cruz: Parking Safety / Surround View Monitor (SVM)
.jpg)
Surround View Monitor can assist in parking by allowing the driver to see around the vehicle.
Detecting sensor
.jpg)

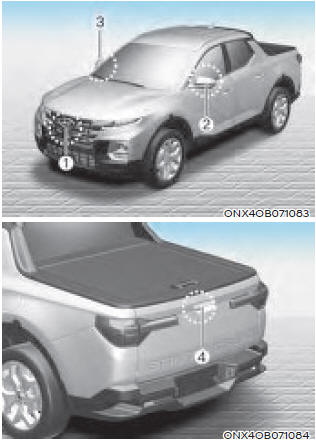

[1] : Surround-front view camera, [2],[3] : Surround-side view camera (under the side view mirror), [4] : Surround-rear view camera
Refer to the picture above for the detailed location of the cameras.
- Surround View Monitor Settings
- Surround View Monitor Operation
- Surround View Monitor Malfunction and Limitations
