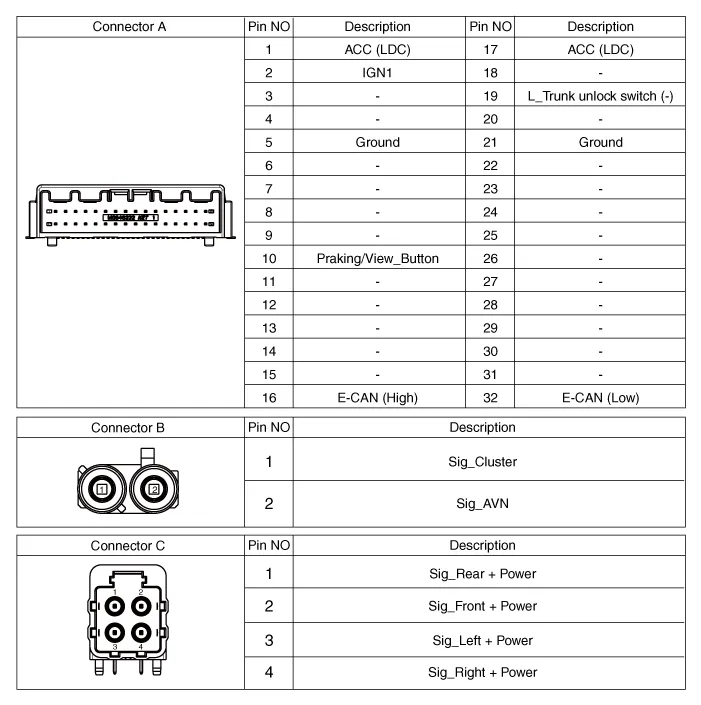

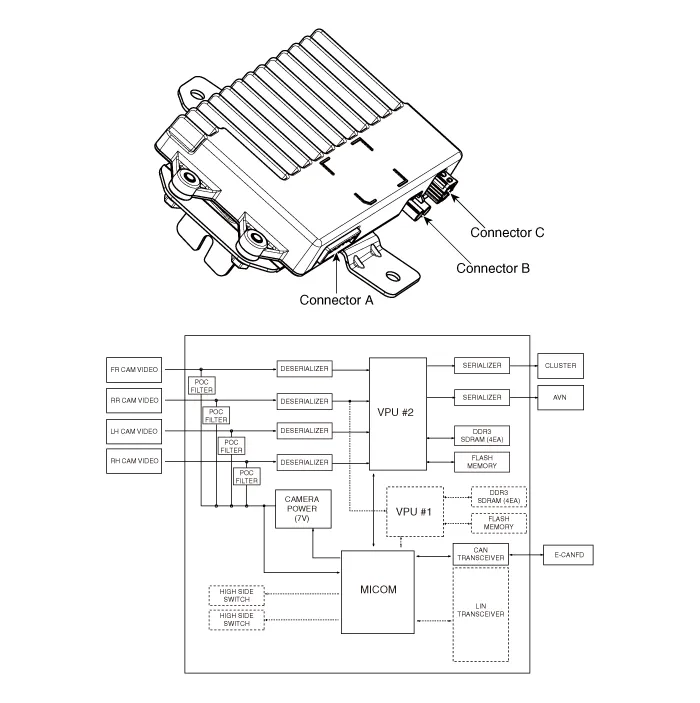

Hyundai Santa Cruz: Surround View Monitor (SVM) / Surround View Monitor (SVM) Unit
1.Disconnect the negative (-) battery terminal.
2.Remove the crash pad center panel.(Refer to Body - "Crash Pad Center Panel")

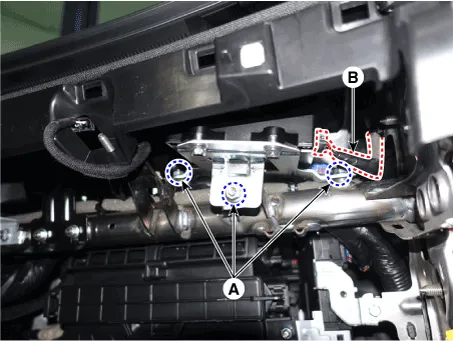

3.Disconnect the ADAS_PRK (S) unit mounting nut (A) and the ADAS_PRK (S) unit main connector (B).

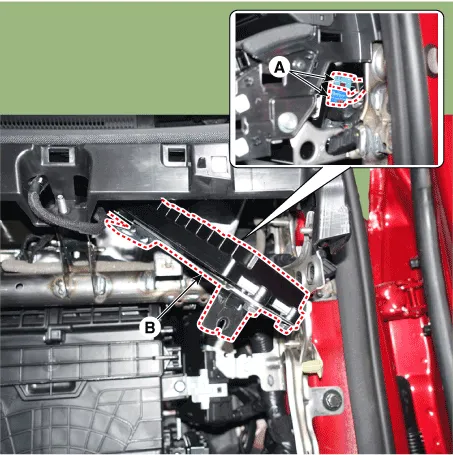

4.Disconnect the camera video connector (A) and remove the ADAS_PRK (S) unit (B).
• Since the length of the connector (A) is short, remove it while paying attention to damage.

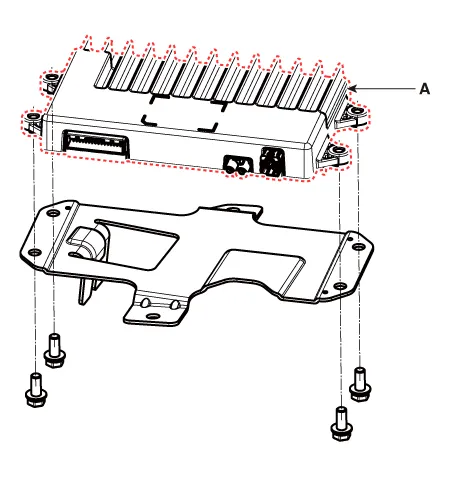

5.Loosen the mounting bolts and remove the ADAS_PKR (S) unit (A) and the bracket.
1.To install, reverse removal procedure.
2.Perform the variant coding procedure.
1.Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

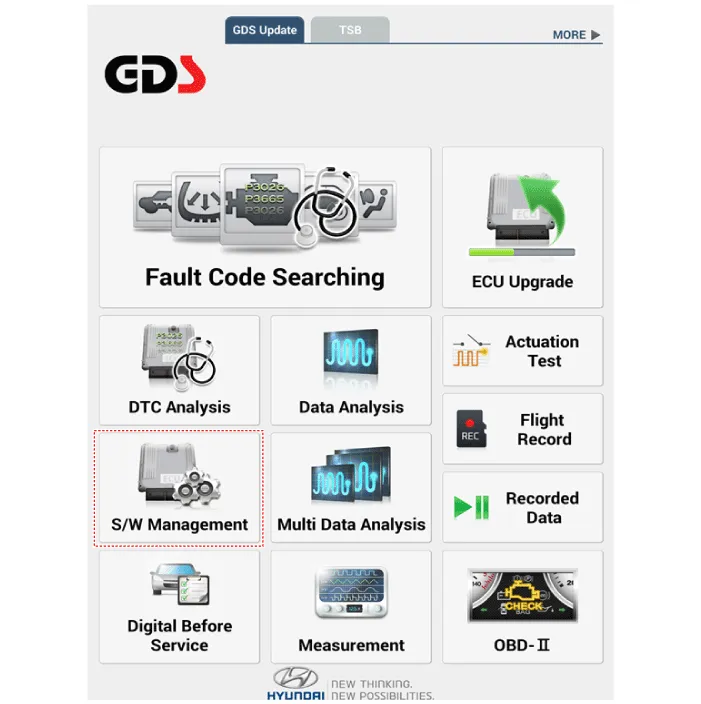

2.Select the 'S/W Management' and 'Car model'.

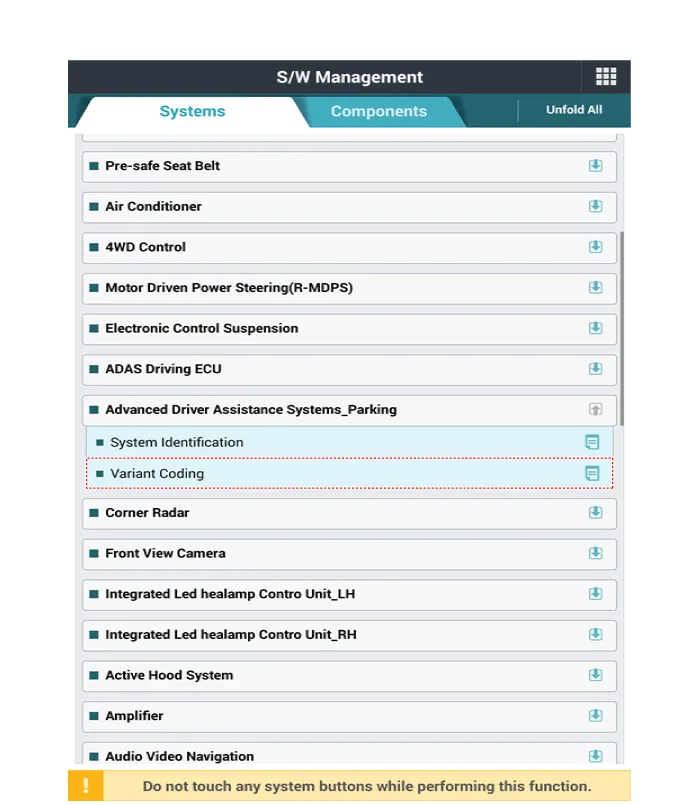

3.Select the 'Advanced Driver Assistance Systems_Parking' and Variant Coding.
Repair procedures
- Inspection
Tolerance Calibration Outline
• SVM calibration tool is required to perform tolerance calibration as shown below.
• Refer to the information below to purcha ...
Surround View Monitor (SVM) Camera
- Components
[Ultra Optical Camera - RH/LH]
[Ultra Optical Camera - Front]
[Ultra Optical Camera - Rear]
- Removal
• In case of bad quality or poor focus, be ...
