Hyundai Santa Cruz: Tire Pressure Monitoring System / TPMS Receiver

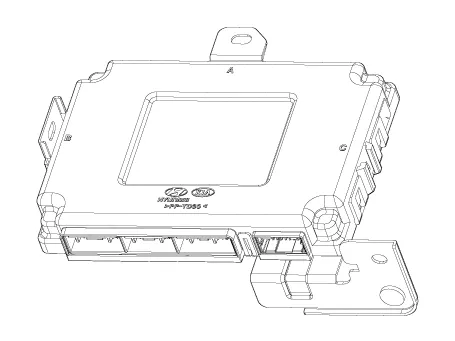

- Description TPMS Receiver : BCM(body control module) integrated management

1.Mode

(1)Virgin State

• The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.

• In this state, there is no Auto-Location, no sensor wake-up, no sensor monitoring and no DTC monitoring..

• The state indicates that platform specific parameters must be written to the receiver and that sensors are un-learned.

(2)Normal State

• In order for tire inflation state and DTC monitoring to occur, the receiver must be in this state.

• In this state, automatic sensor location / learning is enabled.

2.Overview

• Learn TPMS sensor for under inflation monitoring automatically.

• Uses sensor information, distance travelled, background noise levels, Auto-learn status, short / open circuit output status, vehicle battery level, internal receiver states to determine if there is a system or a vehicle fault.

- Operation

1.General Function

• Auto-learn takes place only once per Ignition cycle.

• On successful completion, 4 road wheel sensor ID's are latched into memory for monitoring.

• Until Auto-learn completes, previously learned sensors are monitored for under inflation / leak warnings.

2.General Conditions to Learn New Sensors:

• Receiver must determine that it is confident that sensor is not temporary:a. Uses vehicle speed.b. Uses confidence reduction of previously learned sensors.

• Typical time at driving continuously over 15.5 mph(25 kph) to learn a new sensor is up to 20 minutes.

3.General Conditions to Un-Learn a sensor that is removed :

• It takes less than 20 minutes at 15.5 mph(20-30 kph).

• Confidence reduction is dependent on time which vehicle is driven at speed greater than or equal to 12.4 mph(20-30 kph).

    TPMS Sensor
    - Description 1.Driving stateSensor transmissions occur every 1 minutes and pressure is measured every 15 seconds. 2.Stationary stateSensor transmissions does not occur and pressure is measure ...
