Hyundai Santa Cruz: Brake System / Vacuum Pump

- Removal [G 2.5 T-GDI Theta lll]

1.Disconnect the (-) battery terminal.

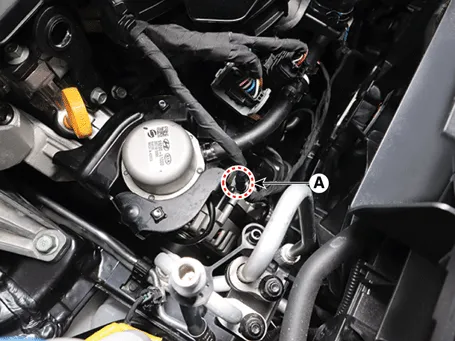

2.Remove the fastener (A).

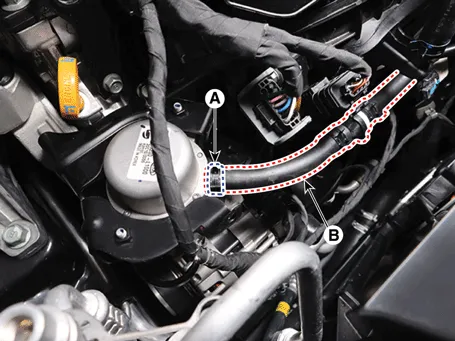

3.Remove the clip (A), then disconnect the vacuum pump hose (B).

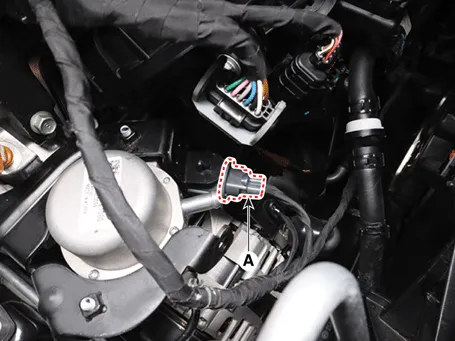

4.Disconnect the vacuum pump connector (A).

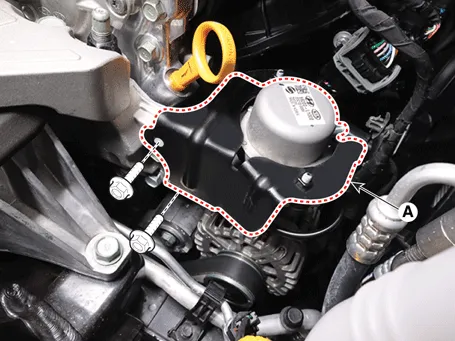

5.Remove the bolts, then remove the vacuum pump assembly (A).

Tightening torque :21.6 - 32.4 N·m (2.2 - 3.3 kgf·m, 15.9 - 23.9 lb·ft)

- Installation

1.Install in the reverse order of removal.
