Hyundai Santa Cruz: Interior Lights / Vanity Mirror Lamp
.jpg)

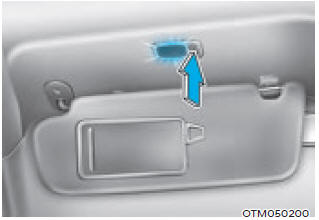

Push the switch to turn the light on or off.
•
: The lamp will turn on if this
button is pressed.
•
: The lamp will turn off if this
button is pressed.
