Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Vehicle Certification Label

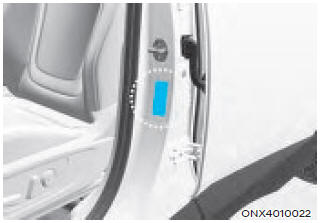

The vehicle certification label attached on the driver’s (or front passenger’s) side center pillar gives the vehicle identification number (VIN).

    Vehicle Identification Number (VIN)
    The VIN is also on a plate attached to the top of the left side dashboard. The number on the plate can easily be seen through the windshield from outside. ...

    Tire Specification and Pressure Label
    The tires supplied on your new vehicle are chosen to provide the best performance for normal driving. The tire label located on the driver’s side center pillar gives the tire pressures recomm ...
