Hyundai Santa Cruz: Lighting System / Head Lamps

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")

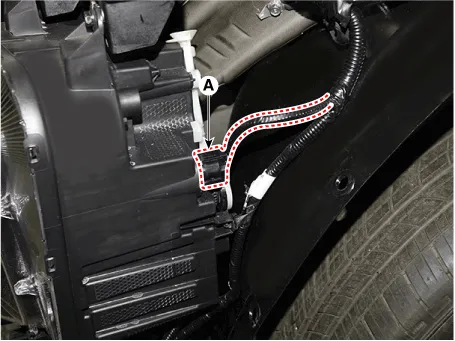

3.Disconnect the head lamp connector (A).

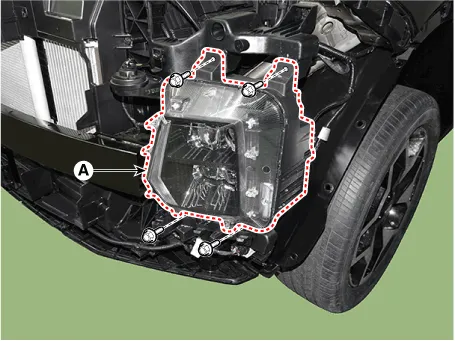

4.Loosen the mounting bolts and then remove the head lamp assembly (A).

5.To install, reverse removal procedure.

- Replacement

1.Remove the front wheel guard.(Refer to Body - "Front Wheel Guard")

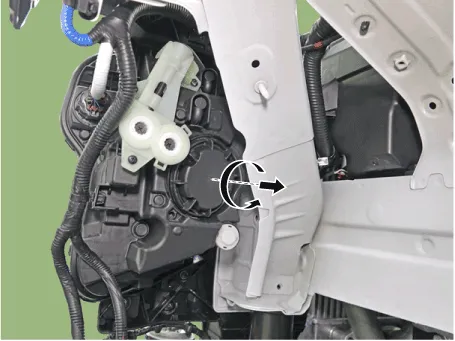

2.Unfasten the screws and then replace the moisture-absorbing agent .

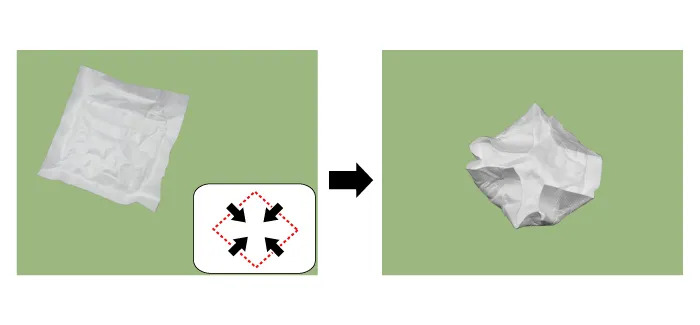

• Fold the moisture absorber as in the illustration below.

• When installation, install it in the same direction before removing.

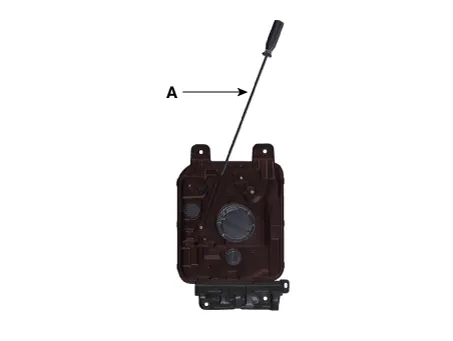

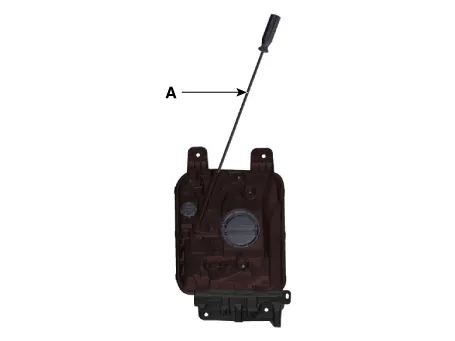

- Head Lamp Aiming Instructions Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows :

1.Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.

2.The vehicle should be placed on a flat ground.

3.With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.A : Vertical (High beam / Low beam)[Standard]

[Option]

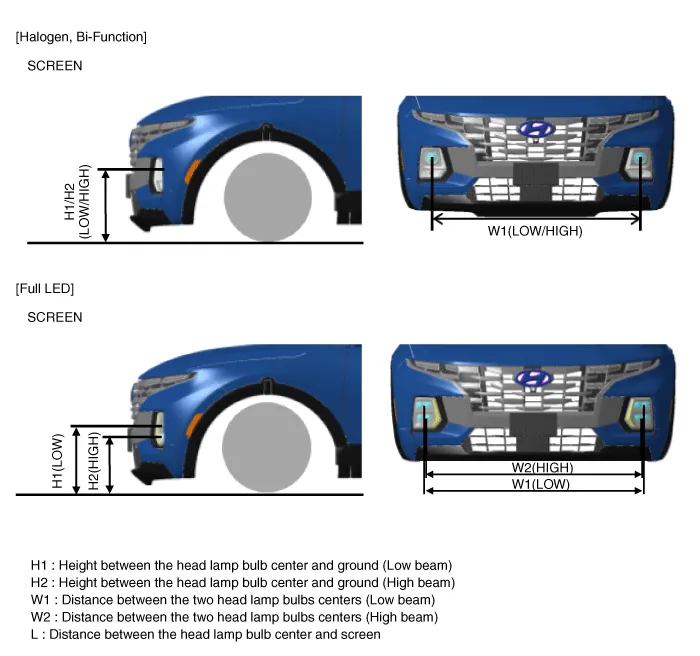

Head Lamp Aiming Point

(Low beam : H1,W1 / High beam : H2,W2) (Unit : mm)
OptionVehicle ConditionH1 H2 W1 W2 L
Halogen
Bi-Function
Without driver6301432Refer to aiming condition
With driver625
FULL LEDWithout driver65156714521451
With driver646562

1.Head Lamp (Low beam)

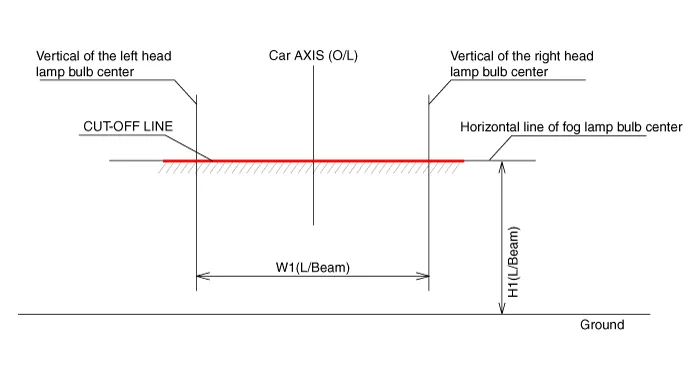

– With the low beam turned on, adjust the cut-off line to be located as shown in the picture below.

– If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

2.Head Lamp (High Beam)

– Turn the high beam on without driver aboard.

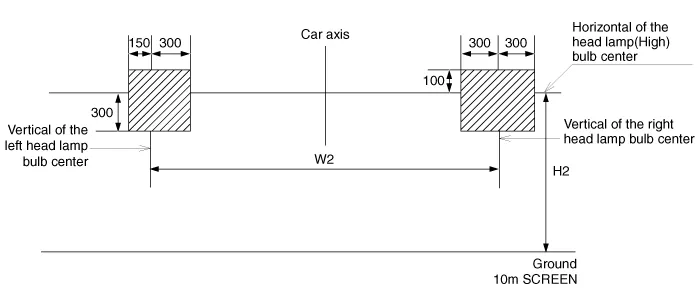

– The cut-off line should be projected in the cut-off line shown in the picture.

– When aiming the low beam, vertical aiming shuld be adjusted after adjusting the horizontal aiming.

– If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

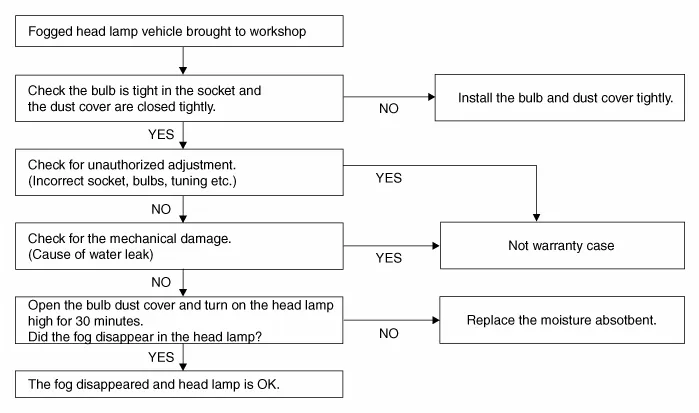

Head lamp fogging Check the below instruction procedure when the head lamp is fogged.
