Hyundai Santa Cruz: Wireless Power Charger System / Wireless Charging Lamp

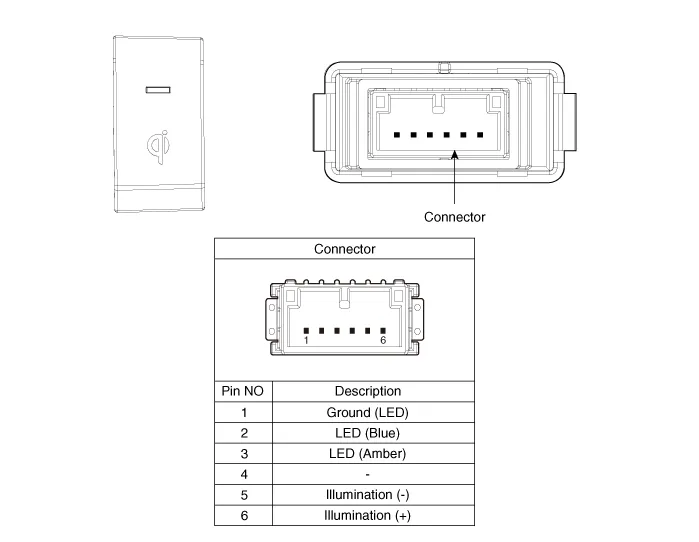

- Components

- Removal



Handling wireless charging system parts by wet hands may cause electric shock.

1.Disconnect the negative (-) battery terminal.

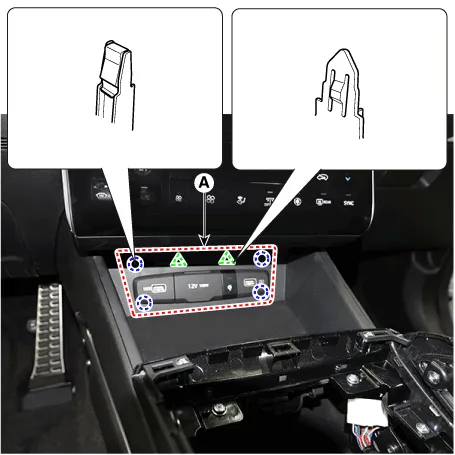

2.Remove the floor console tray assembly (A).

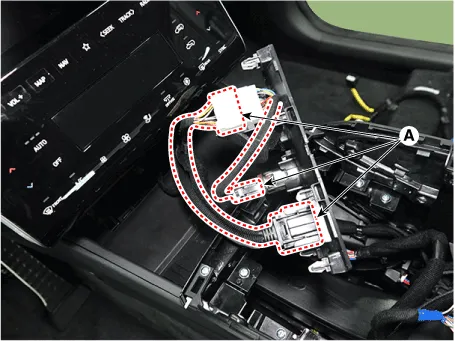

3.Disconnect the floor console tray connectors (A).

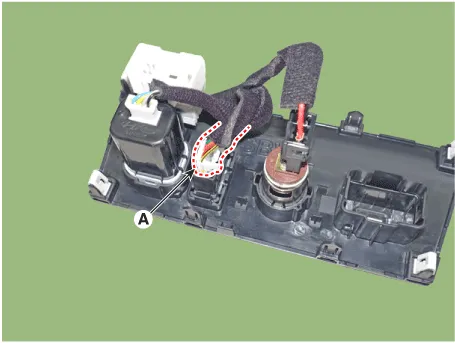

4.Disconnect the wireless charging lamp connector (A).

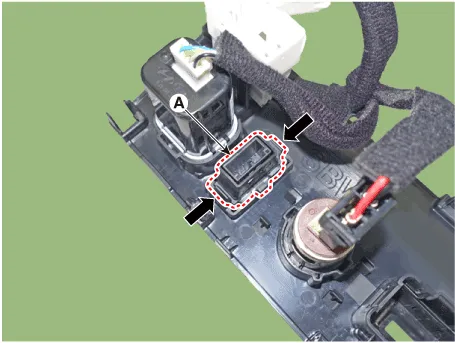

5.Remove the wireless charging lamp (A).

- Installation

1.Install the wireless charging lamp.

2.Connect the wireless charging lamp connector.

3.Install the floor console tray assembly.

4.Connect the negative (-) battery terminal.
