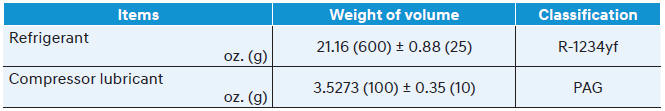

Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Air Conditioning System
Contact an authorized HYUNDAI dealer for more details.
Tires and Wheels
NOTICE
It is permissible to add 3 psi to the standard tire pressure
specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. ...
