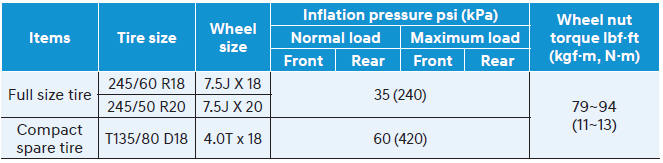

Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Tires and Wheels

NOTICE

  • It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expected soon. Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
  • Tire inflation pressures will vary with changes in elevation. If driving in areas of higher or lower elevation, be sure to check and adjust for proper tire inflation.

CAUTION

  • When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or not work properly.
  • When replacing tires, ALWAYS use the same size, type, construction and tread pattern supplied with the vehicle for all tires.
