Hyundai Santa Cruz: Lubrication System / Oil Pressure Control Solenoid Valve

- Removal and Installation

1.Remove the engine room under cover.(Refer to Engine And Transaxle Assembly - “Engine Room Under Cover”)

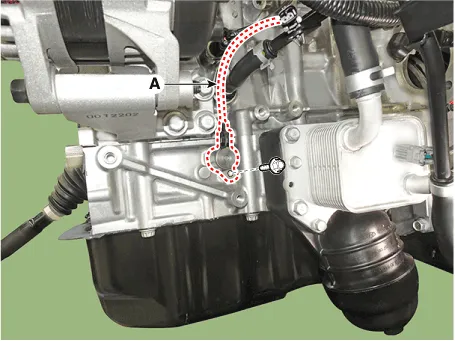

2.Disconnect the oil pressure control solenoid valve wiring, and then remove the oil pressure control solenoid valve (A).

Tightening torque :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)



• When installing, apply engine oil to the O-ring.

3.Install in the reverse order of removal.
