Hyundai Santa Cruz: Lubrication System / Oil Level Gauge & Pipe

- Removal and Installation

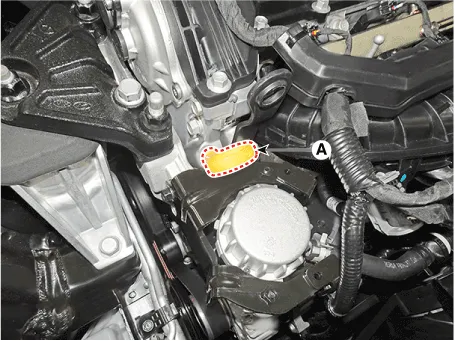

1.Remove the oil level gauge (A).

2.Remove the timing chain cover.(Refer to Timing System - "Timing Chain Cover")

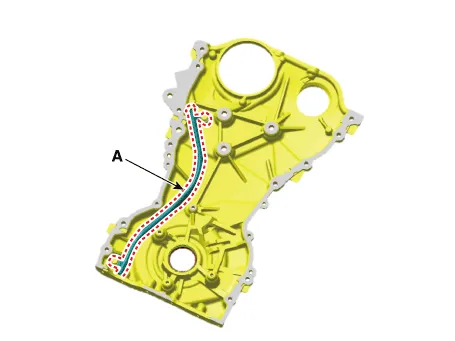

3.Remove the oil level gauge guide (A).

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.Install in the reverse order of removal.
