Hyundai Santa Cruz: Immobilizer System / Antenna Coil

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

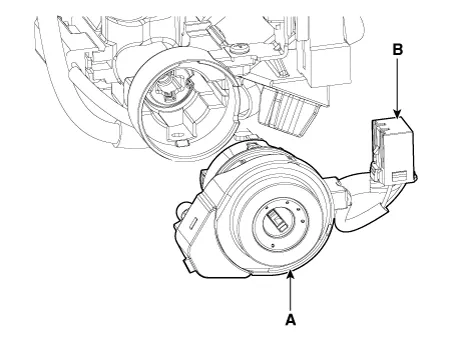

3.Disconnect the 6P connector (B) of the coil antenna and then remove the coil antenna (A) after loosening the screw.

- Installation

1.Install the coil antenna and connect the 6P connector.

2.Install the crash pad lower panel.

3.Connect the negative (-) battery terminal.

    Immobilizer Control Unit
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the heater control unit.(Refer to Heating,Ventilation And Air Conditioning - "Heater Control Unit") 3.Loosen the mounting bolt ...
