Hyundai Santa Cruz: Immobilizer System / Immobilizer Control Unit

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the heater control unit.(Refer to Heating,Ventilation And Air Conditioning - "Heater Control Unit")

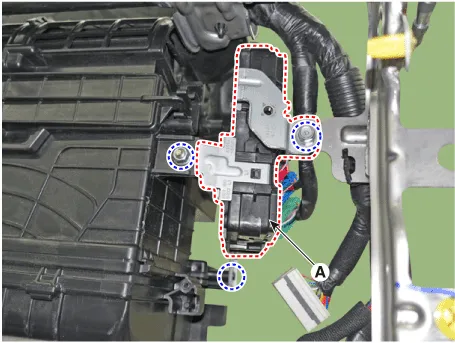

3.Loosen the mounting bolt,nut,screw and remove the Integrated Body Control Unit (A).

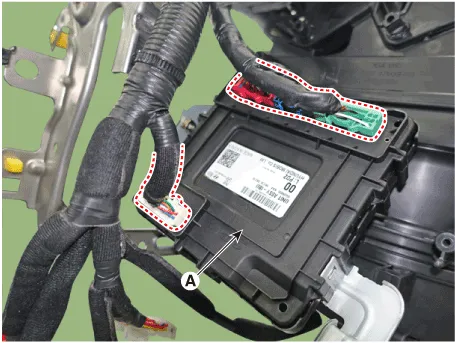

4.Disconnect the connectors and remove the Integrated Body Control Unit (A).

- Installation

1.Install the Integrated Body Control Unit.

2.Install the heater control unit.

3.Connect the negative (-) terminal

    Repair procedures
    - Adjustment 1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system (diagnostic tool) provides the foll ...

    Antenna Coil
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel") 3.Disconnect the 6P connector (B) of the coil antenna and ...
