Hyundai Santa Cruz: Lighting System / Back-up Lamps

- Removal

1.Disconnect (-) battery terminal.

2.Remove the rear bumper assembly.(Refer to Body - "Rear Bumper Assembly")

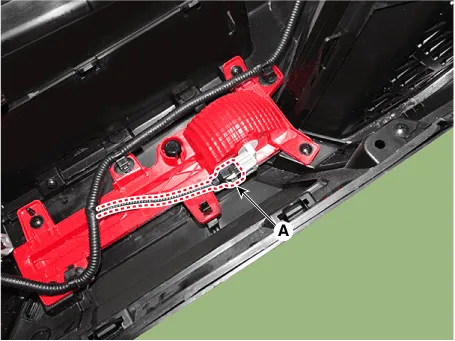

3.Disconnect the back-up lamp connector (A) and remove the mounting clips.

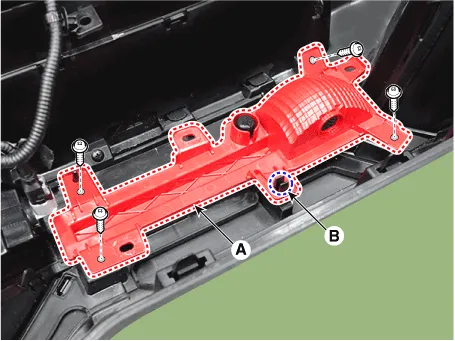

4.Loosen the mounting screws, push the clip (B) and remove the back-up lamp (A).

- Installation

1.Connect the rear back-up lamp connector.

2.Install the back-up lamp.

3.Install the rear bumper assembly.

4.Connect the negative (-) battery terminal.

- Replacement

1.Disconnect the negative (-) battery terminal.

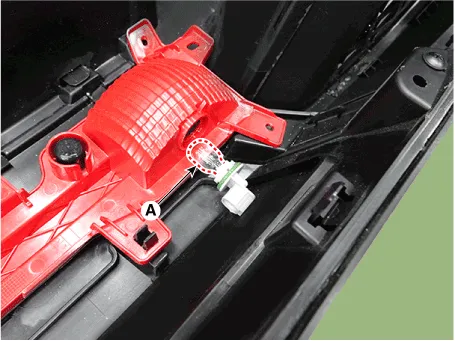

2.Disconnect the back-up lamp connector (A).

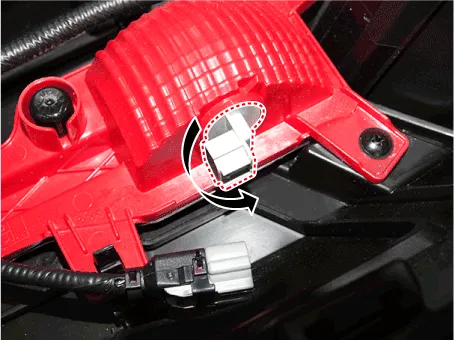

3.Remove the back-up lamp bulb after turning in the counterclockwise direction.

4.Replace the back-up lamp bulb (A).

5.To install, reverse removal procedure.
