Hyundai Santa Cruz: Body Side Molding / C Pillar Garnish

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

[C Pillar Inner Garnish]

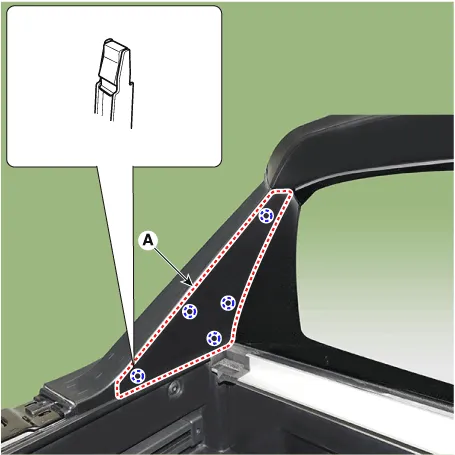

1.Using a screwdriver or remover, remove the C piller inner garnish (A).

2.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).

[C Pillar Outer Garnish]

1.Remove the C pillar inner garnish.

2.Remove the bed top rail trim assembly.(Refer to Bed Lid - "Bed Top Rail Trim Assembly")

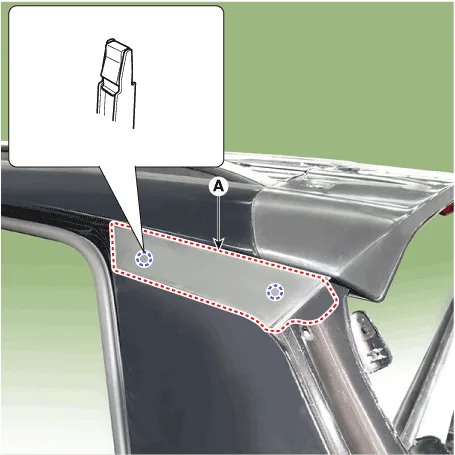

3.Loosen the mounting screws, remove the C pillar outer garnish (A).

4.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).

[C Pillar Garnish]

1.Remove the C pillar outer garnish.

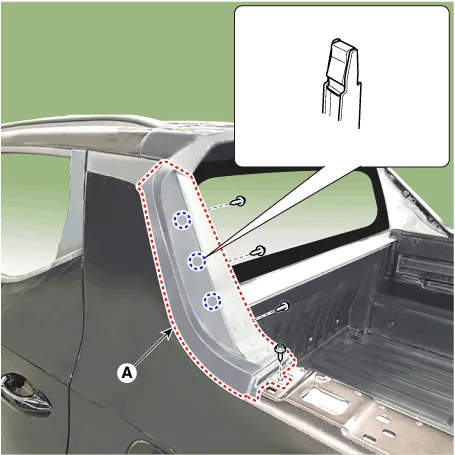

2.Using a screwdriver or remover, remove the C piller garnish (A).

3.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
