Hyundai Santa Cruz: Body Side Molding / Front Wheel Guard

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

2.Remove the front tire.(Refer to Suspension System - "Wheel")

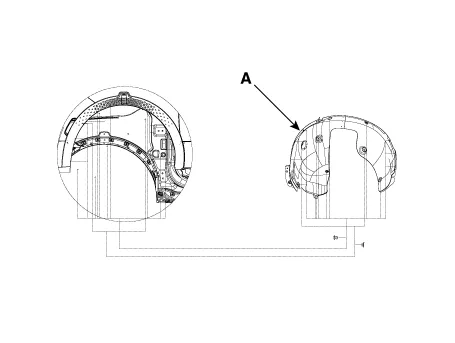

3.Loosen the mounting nuts, clips and then remove the front wheel guard (A).

4.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
