• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
1.Remove the rear tire.(Refer to Suspension System - "Wheel")

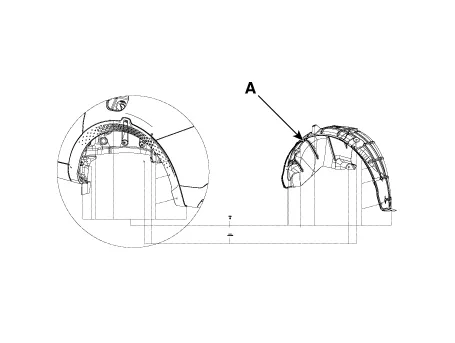

2.Loosen the mounting nuts, clips and then remove the rear wheel guard (A).
3.To install, reverse the removal procedure.
• Replace any damaged clips (or pin-type retainers).
