Hyundai Santa Cruz: Body Side Molding / Roof Side Molding

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

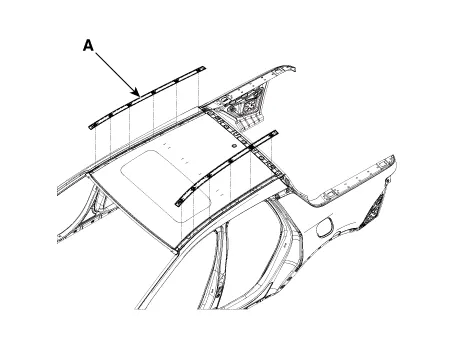

1.Using a screwdriver or remover, remove the roof side molding (A).

2.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
