Hyundai Santa Cruz: Evaporative Emission Control System / Canister

- Removal



• Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Turn the ignition switch OFF and disconnect the battery (-) terminal.

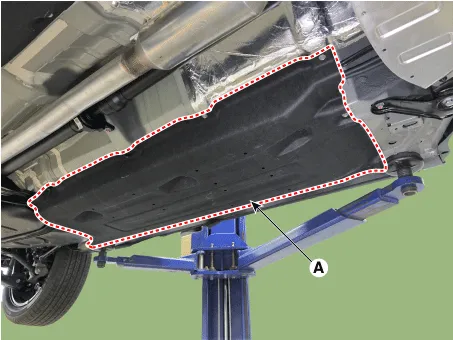

2.Remove the floor under cover (A).

Tightening Torque :7.9 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

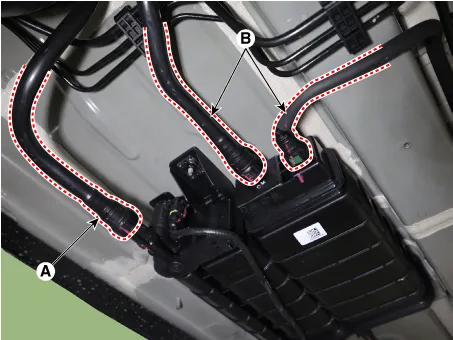

3.Disconnect the vent hose quick-connector (A).

4.Disconnect the vapor hose quick-connector (B).

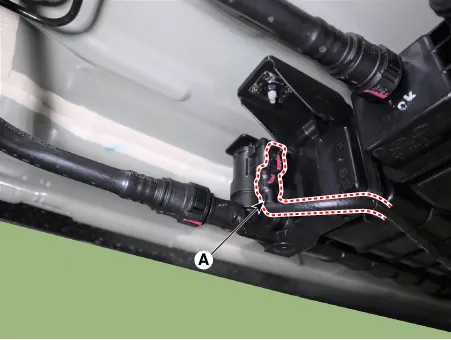

5.Disconnect the canister close valve connector (A).

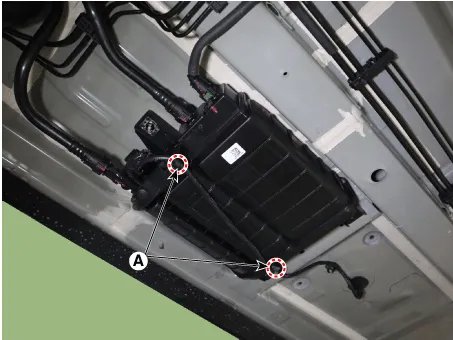

6.Remove the wiring clip (A).

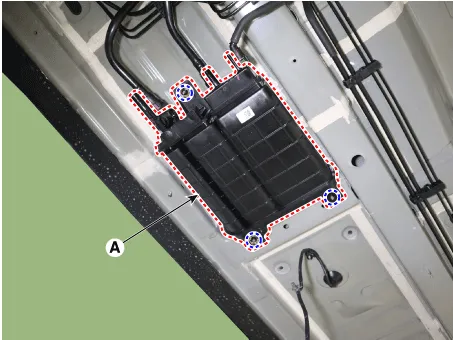

7.Remove the canister (A).

Tightening Torque :7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.7 lb-ft)

- Installation

1.Install in the reverse order of removal.

- Inspection

1.Check for the following items visually.

– Cracks or leakage of the canister

– Loose connection, distortion, or damage of the vapor hose/tube

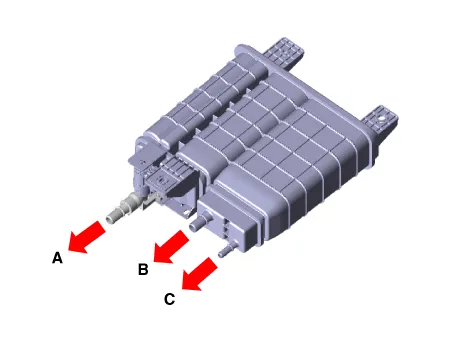

A : Canister ↔ AtmosphereB : Canister ↔ Fuel TankC : Canister ↔ Intake Manifold
