Hyundai Santa Cruz: Evaporative Emission Control System / Repair procedures

- Inspection [Evaporate Leakage Test]

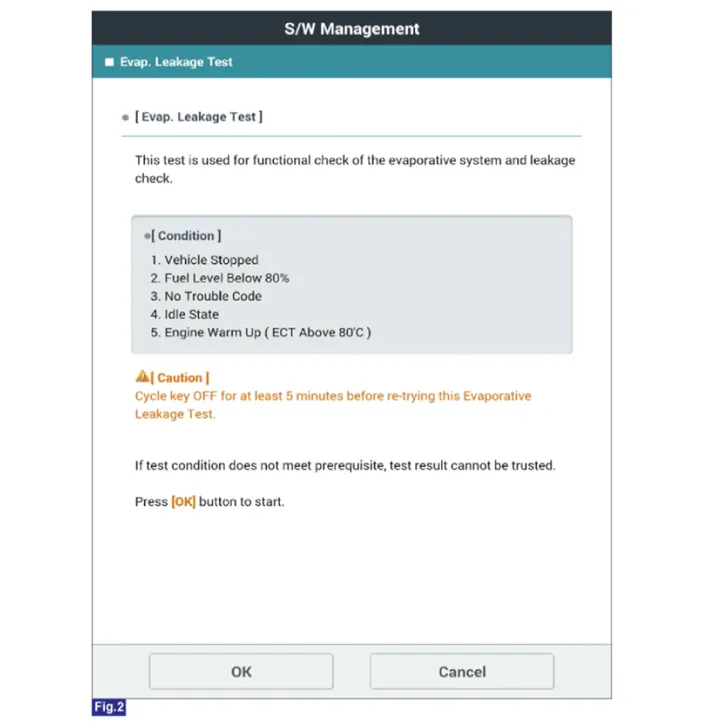

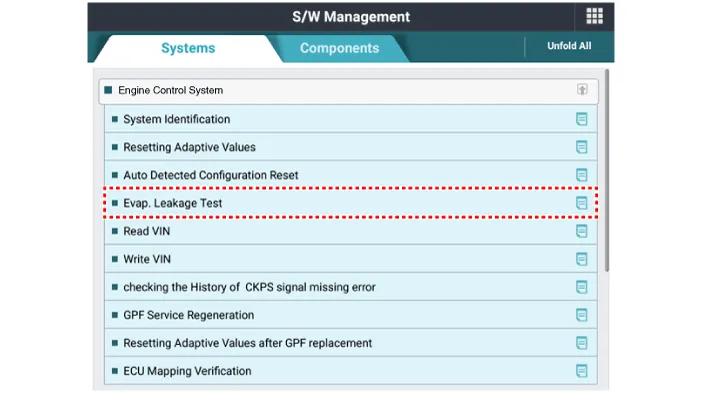

1.Select "Evap. Leakage Test".

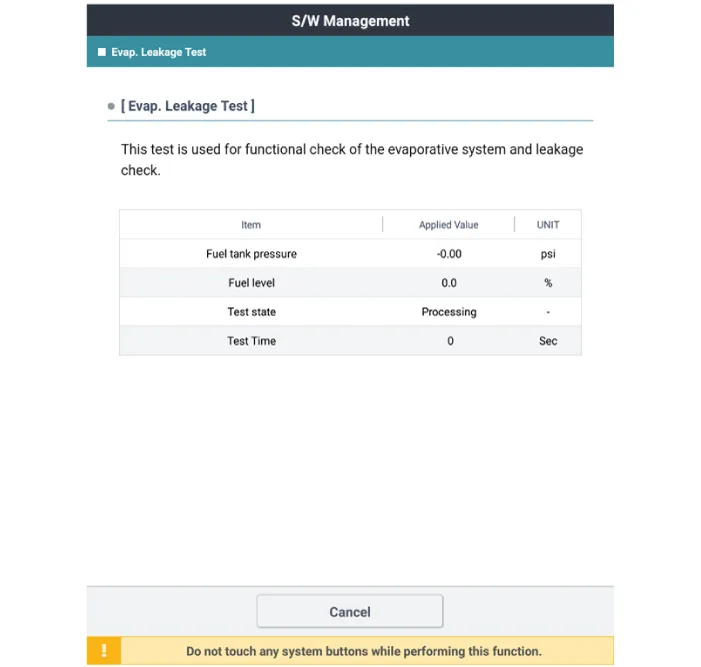

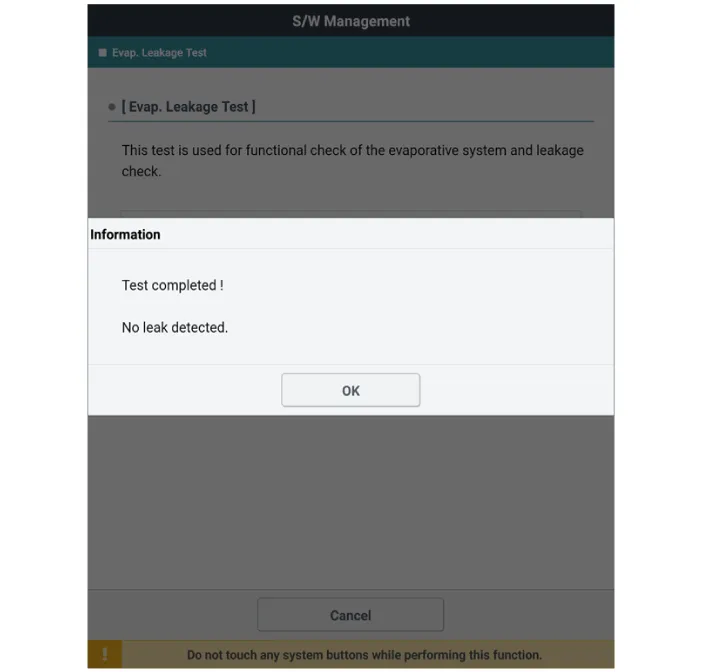

2.The test shall be conducted in accordance with diagnostic tool instructions.

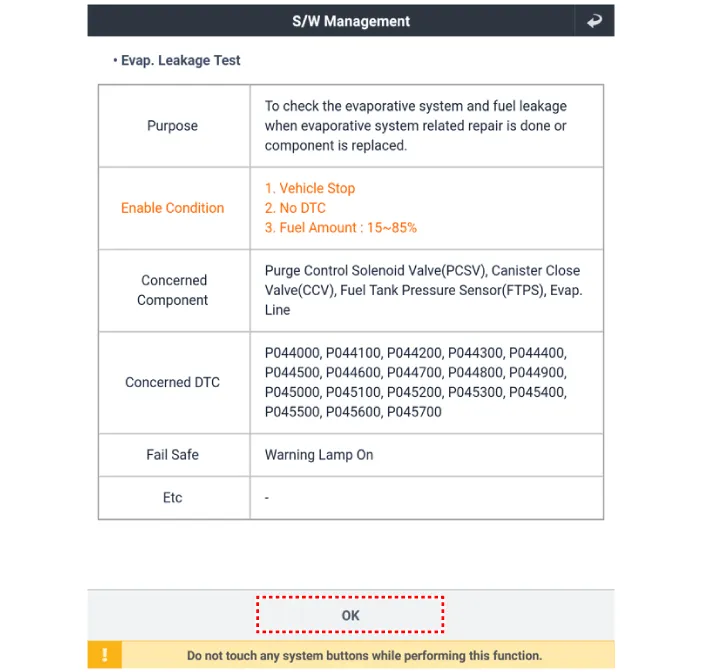

Evap. Leakage Test Enable Condition

– Engine idle

– No DTC

– Fuel Amount : 15 - 85%

– P, N - Lever (or Neutral)

– Engine Coolant Temperature < 105°C (221°F)

    Schematic Diagrams
    - Schematic Diagram • MAPS : Manifold Absolute Pressure Sensor • PCSV : Purge Control Solenoid Valve • MAFS : Mass Air Flow Sensor • FTPS : Fuel Tank Pressure Sensor • CCV ...

    Canister
    - Removal     • Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General ...
