Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Emission Control System / Evaporative Emission Control System / Fuel Filler Cap

Hyundai Santa Cruz: Evaporative Emission Control System / Fuel Filler Cap

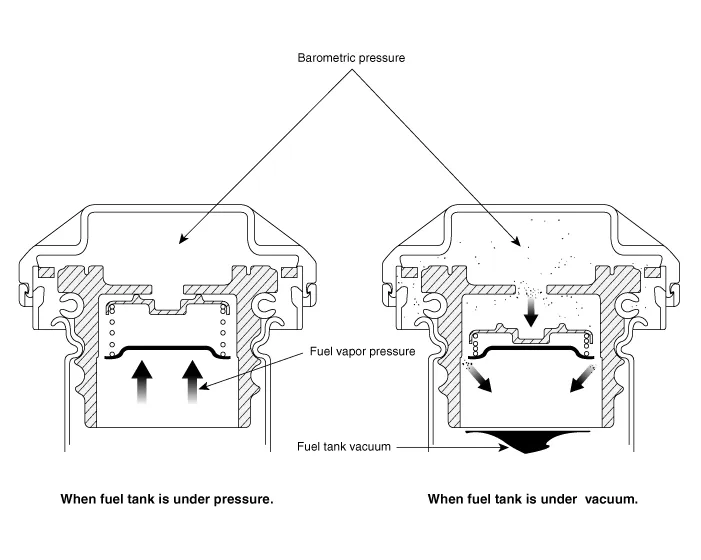

- Description A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which seals the fuel filler. After the gasket on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating the seal has been set.

Canister

- Removal • Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General ...

Fuel Tank Air Filter

- Removal • Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General ...
