Hyundai Santa Cruz: Storage Compartment / Center Console Storage

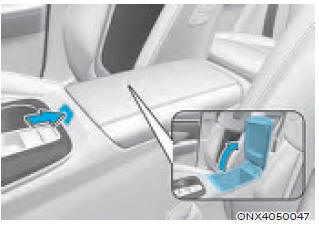

To open:

Press the button.

    Storage Compartment
    WARNING Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot tempera ...

    Glove Box
    To open: Pull the lever. WARNING ALWAYS close the glove box door after use. An open glove box door can cause serious injury to the passenger in an accident, even if the passenger is wearing a se ...
