Hyundai Santa Cruz: Storage Compartment / Glove Box

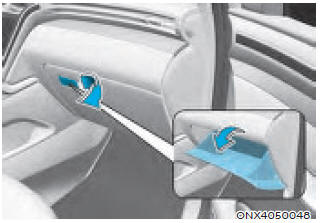

To open:

Pull the lever.

WARNING

ALWAYS close the glove box door after use. An open glove box door can cause serious injury to the passenger in an accident, even if the passenger is wearing a seat belt.

    Center Console Storage
    To open: Press the button. ...

    Storage Box Under the Rear Seat
    Lift and fold up the rear seat. WARNING Do not sit on the storage box. It may damage the storage box or cause serious injury in the event of sudden braking collision. ...
