Hyundai Santa Cruz: Rear Suspension System / Components and Components Location

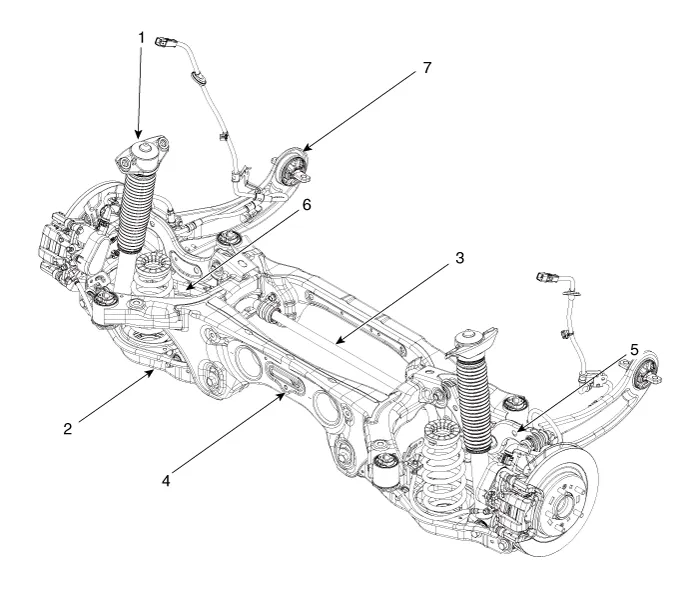

- Components [2WD]

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear sub frame
5. Rear upper arm
6. Rear assist arm
7. Trailing arm

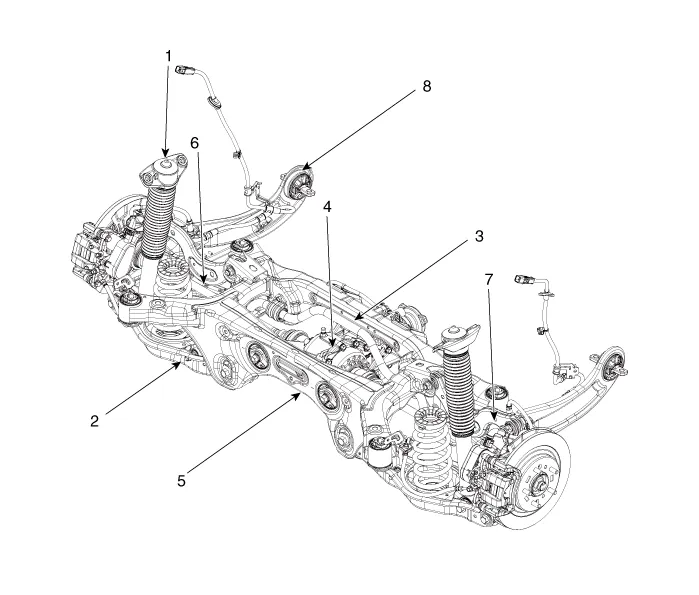

[4WD]

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear differential carrier
5. Rear sub frame
6. Rear driveshaft
7. Rear upper arm
8. Trailing arm


    Rear Suspension System
    ...

    Rear Shock Absorber
    - Components 1. Lock nut2. Insulator assembly 3. Dust cover 4. Rear shock absorber - Removal     • When lifting a vehicle using a lift, be careful not to damage the lo ...
