Hyundai Santa Cruz: Steering wheel / Components and Components Location

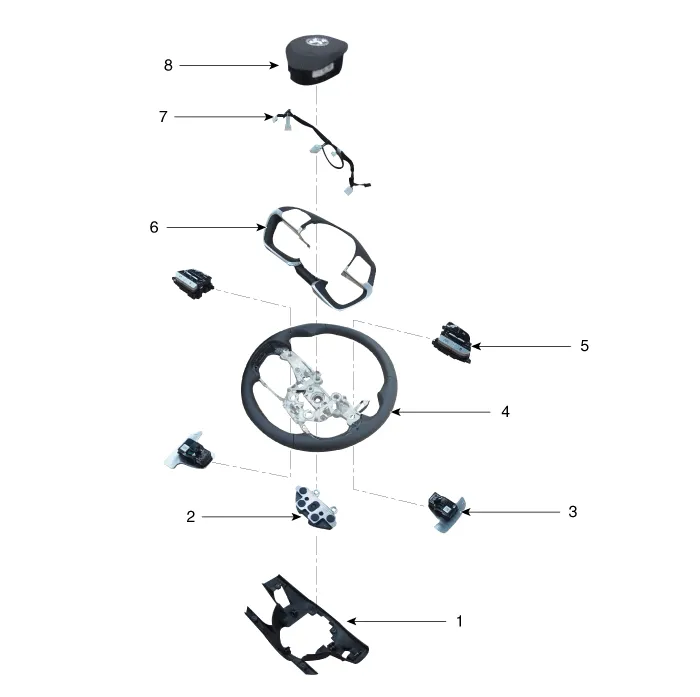

- Components

1. Lower cover
2. Damper
3. Paddle shift
4. Steering Wheel
5. Remote control switch
6. Switch bezel
7. Wiring
8. Drive airbag module (DAB)


    Steering wheel
    ...

    Repair procedures
    - Removal 1.Turn the steering wheel so that the front wheels can face straight ahead. 2.Turn the ignition switch OFF and disconnect the battery negative (-) cable. 3.Remove the drive airbag mod ...
