Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Body (Interior and Exterior) / Cowl Top Cover / Components and Components Location

Hyundai Santa Cruz: Cowl Top Cover / Components and Components Location

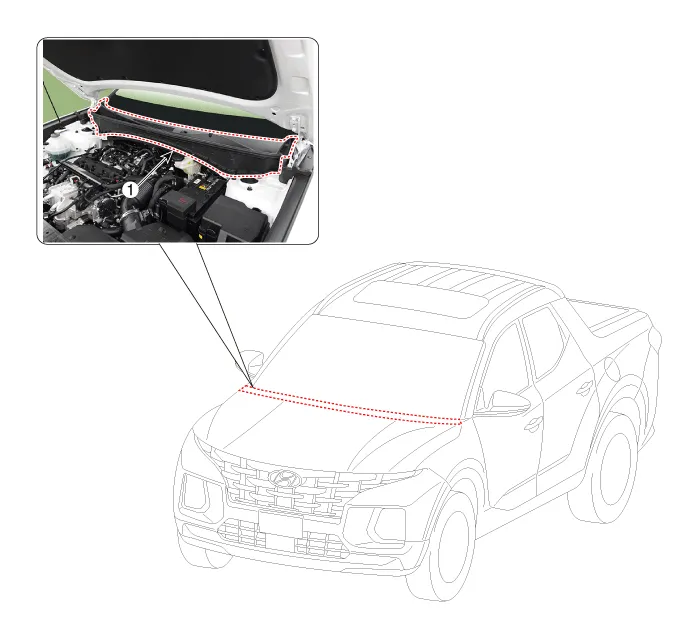

- Component Location

1. Cowl Top Cover

Repair procedures

- Replacement 1.Remove the cap and the nuts, and then remove the wiper arm (A).Tightening torque :22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft) 2.Disconnect the washer nozzle (A). 3 ...
