Hyundai Santa Cruz: Cowl Top Cover / Repair procedures

- Replacement

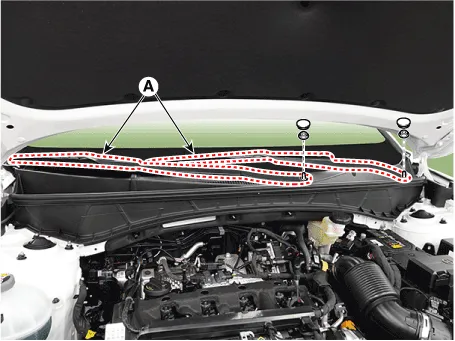

1.Remove the cap and the nuts, and then remove the wiper arm (A).

Tightening torque :22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

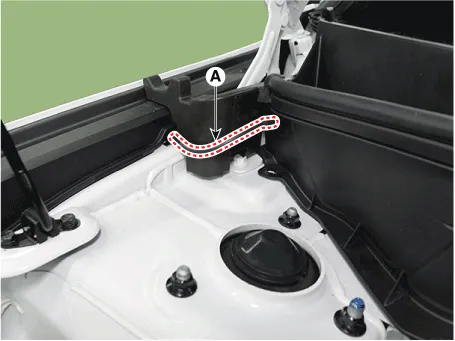

2.Disconnect the washer nozzle (A).

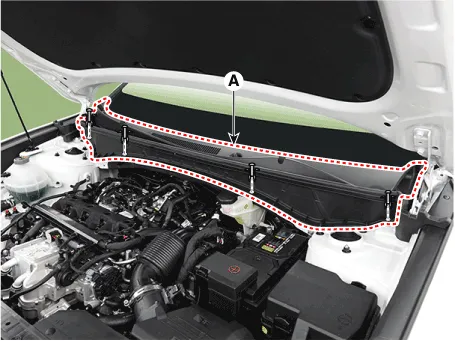

3.Loosen the mounting clips, remove the cowl top cover (A).

4.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
