Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Body Electrical System / Multifunction Switch / Components and Components Location

Hyundai Santa Cruz: Multifunction Switch / Components and Components Location

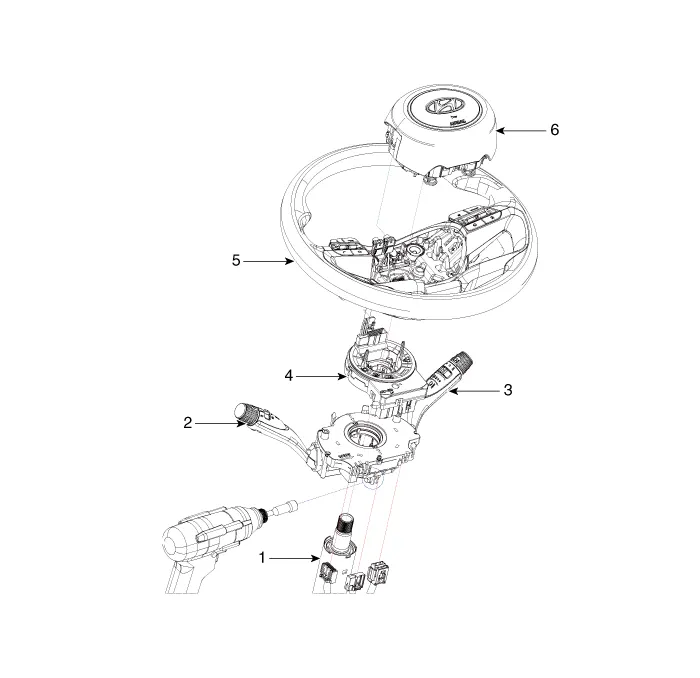

- Components

1. Steering column
2. Lighting swtich
3. Wiper switch
4. Clock spring
5. Steering wheel
6. Driver airbag (DAB)

Specifications

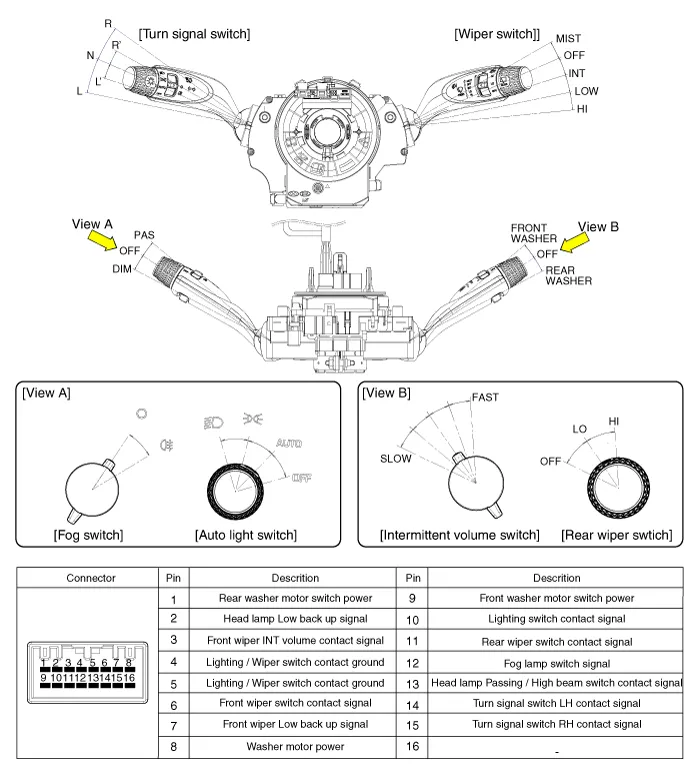

- Specifications ItemsSpecifications Rated voltageDC 12V Operating temperature range-22 to +176°F (-30°C to +80°C) Rated loadDimmer & passing switchHigh : 0.2A (Relay load)Low : 0.2A (Rel ...
