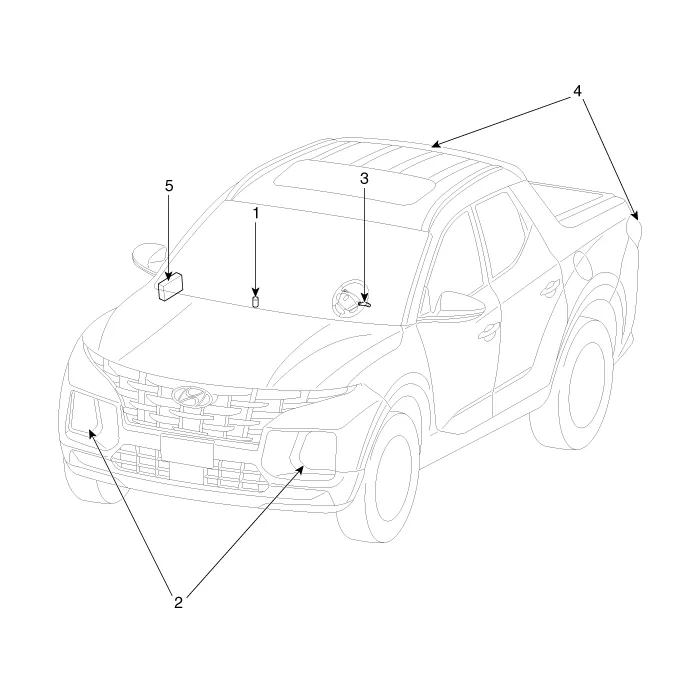

Hyundai Santa Cruz: Auto Lighting Control System / Components and Components Location
1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. IBU (Integrated Body Control Unit)
