Hyundai Santa Cruz: Crash Pad / Crash Pad Garnish

- Component Location

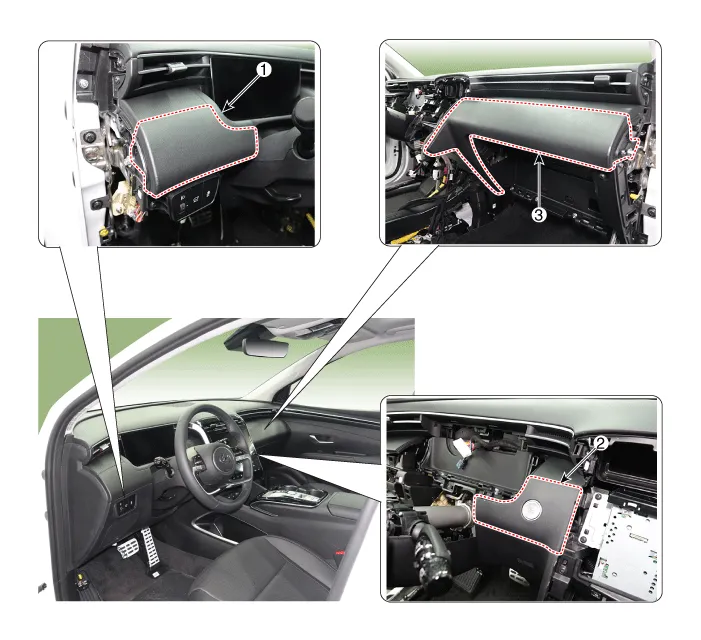

1. Crash pad garnish [LH]
2. Crash pad garnish [CTR]
3. Crash pad garnish [RH]


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

[LH]

1.Remove the crash pad lower panel.(Refer to Crash Pad - "Crash Pad Lower Panel")

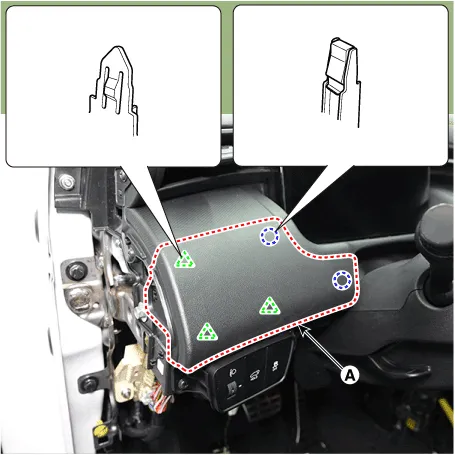

2.Loosen the mounting screw, remove the crash pad garnish[LH] (A).

3.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).

[CTR]

1.Remove the cluster fascia panel.(Refer to Crash Pad - "Cluster Fascia Panel")

2.Remove the front monitor.(Refer to Body Electrical System - "Front Monitor")

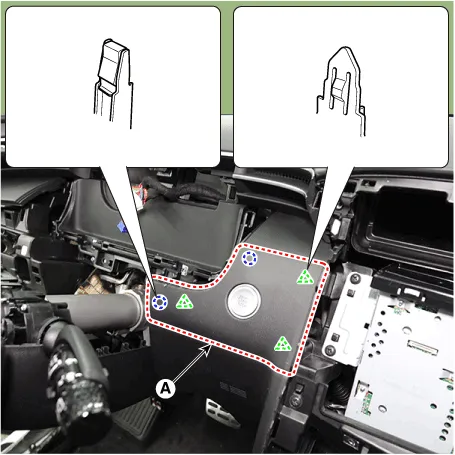

3.Remove the crash pad garnish[CTR] (A).

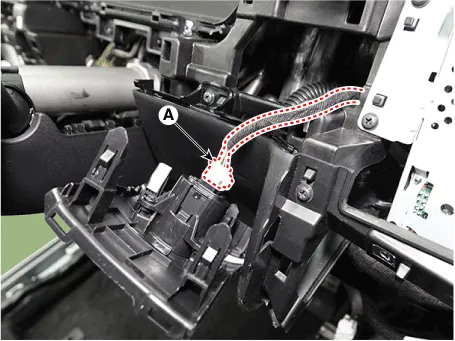

4.Disconnect the start button connector (A).

5.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).

• Make sure the connectors are plugged in properly, and the antenna lead is connected properly.

[RH]

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad side cover[RH].(Refer to Crash Pad - "Crash Pad Side Cover")

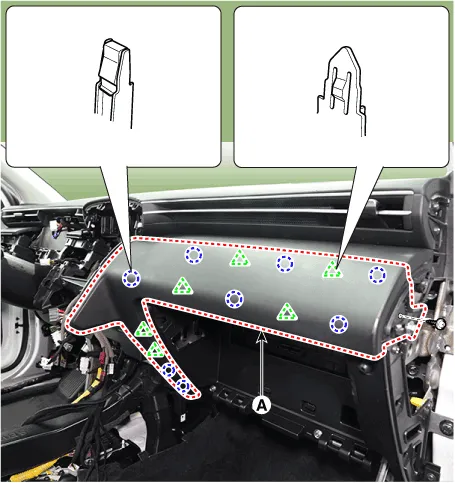

3.Loosen the mounting screw, remove the crash pad garnish[RH] (A).

4.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
