Hyundai Santa Cruz: Audio/AVNT System / Antenna

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the roof trim.(Refer to Body - "Roof Trim Assembly")

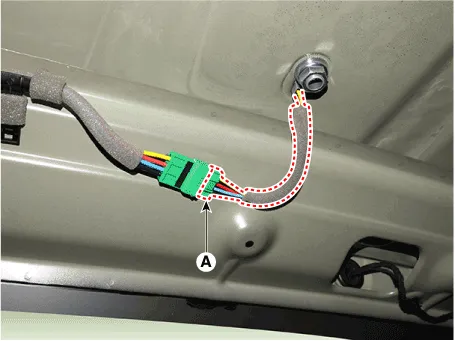

3.Disconnect the antenna connector (A).

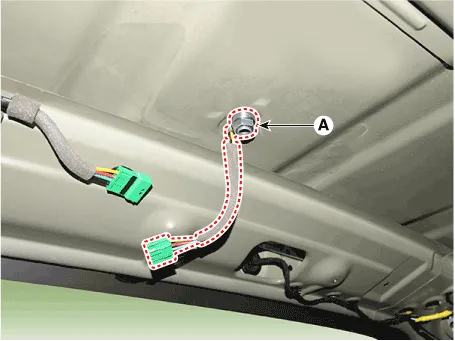

4.Remove the roof antenna mounting nut (A).

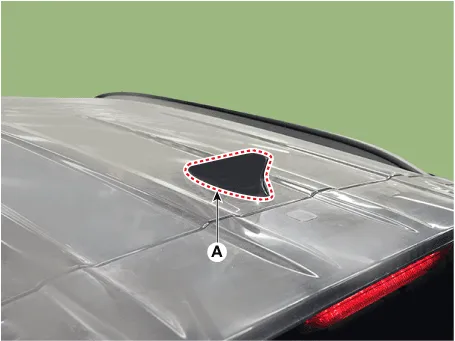

5.Remove the roof antenna (A).

- Installation

1.Install the roof antenna and then connecting the antenna connector.

2.Install the rear roof trim.

3.Connect the negative (-) battery terminal.



• Make sure that the cables and connectors are plugged in properly.

• Check the AVN system for normal operation.
