Hyundai Santa Cruz: Crash Pad / Crash Pad Side Cover

- Component Location

[LH]

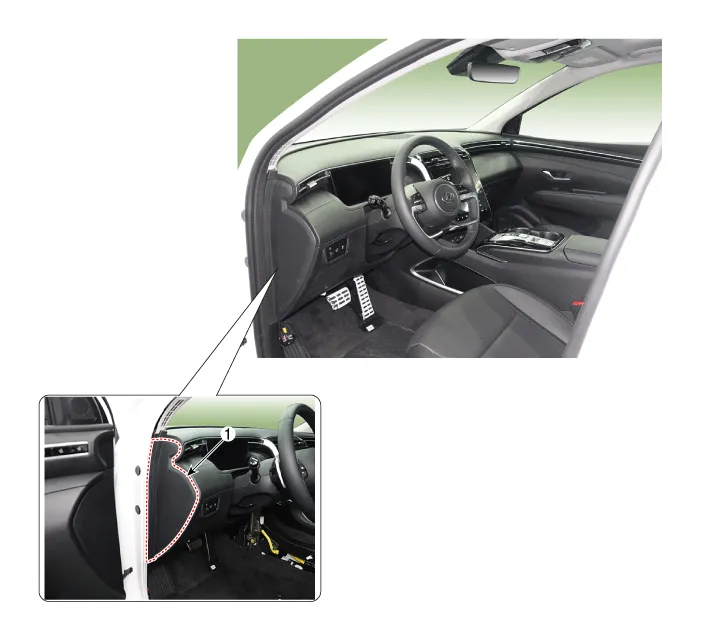

1. Crash pad side cover [LH]


[RH]

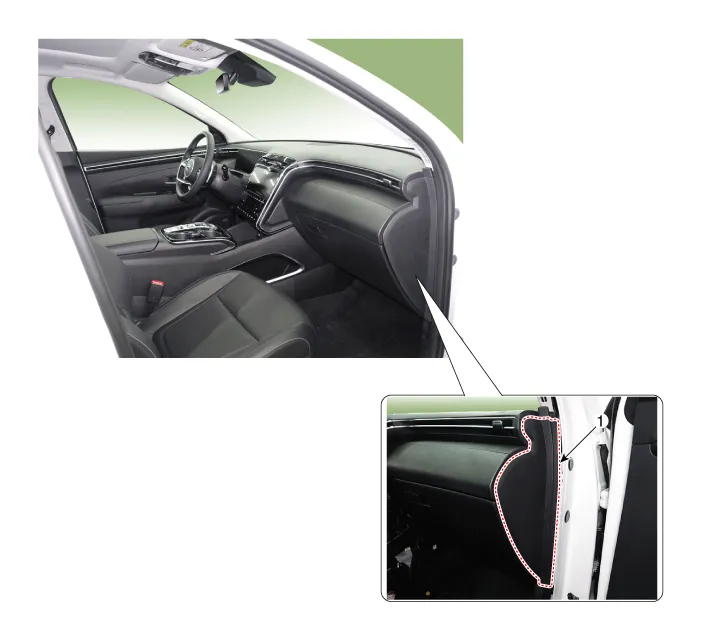

1. Crash pad side cover [RH]


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

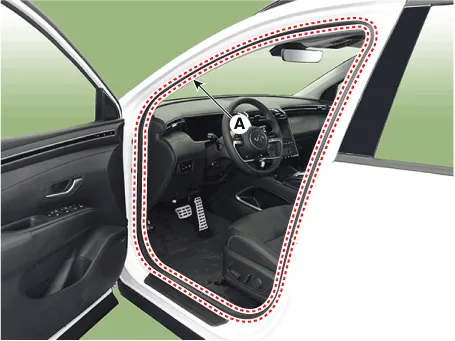

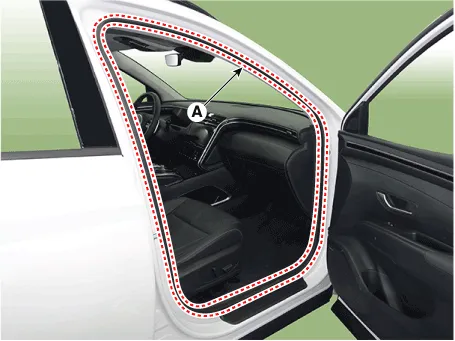

1.Remove the front door body side weatherstrip (A).[LH]

[RH]

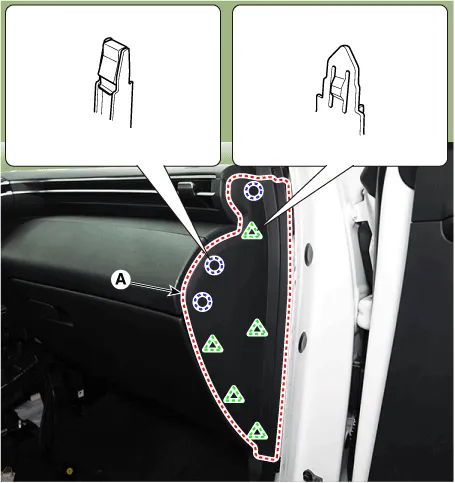

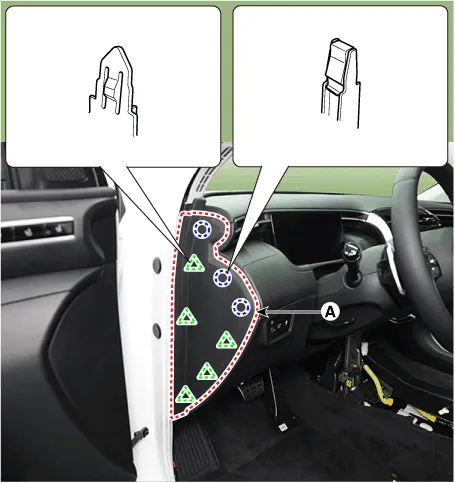

2.Using a screwdriver or remover, remove the crash pad side cover (A).[LH]

[RH]

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
