Hyundai Santa Cruz: Driving your Vehicle / Dual Clutch Transmission
.jpg)
Good Driving Practices

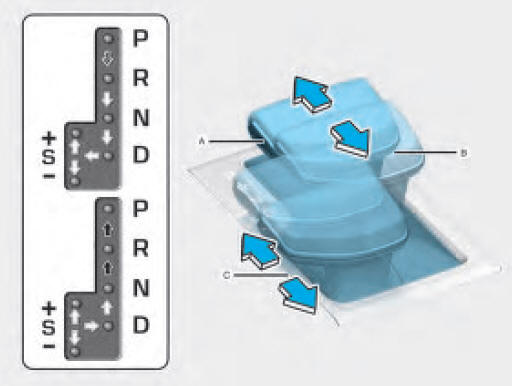

Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
Never move the shift lever into P
(Park) when the vehicle is in motion.
...
Dual Clutch Transmission Operation
The dual clutch transmission has eight forward speeds and one reverse speed.
The individual speeds are selected automatically when the shift lever is in the
D (Drive)
position.
The advanced wet-c ...
