Hyundai Santa Cruz: ESC (Electronic Stability Control) System / ESC OFF Switch

- Description

1.The ESC OFF switch is for the user to turn off the ESC system.

2.The ESC OFF lamp is on when ESC OFF switch is engaged.

- Removal

1.Disconnect the battery negative ( - ) terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

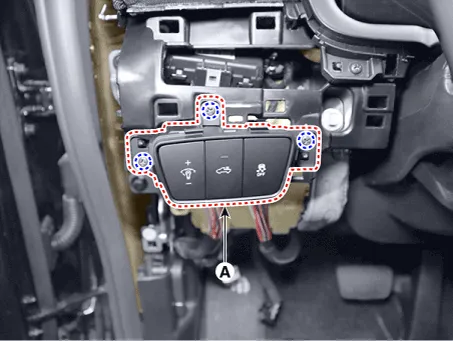

3.Remove the screws and remove the ESC OFF switch (A).

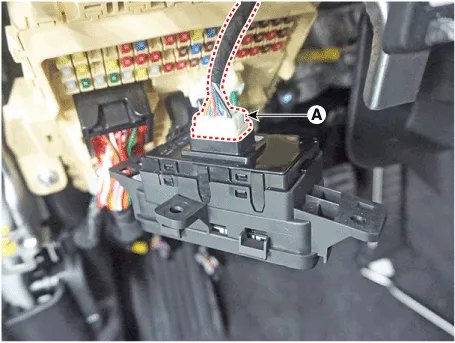

4.Remove the ESC OFF switch connector (A) by pressing the locking pin.

- Installation

1.Install in the reverse order of removal.

    ESC (Electronic Stability Control) Module
    - Components 1. Front - right (FR)2. Rear - left (RL)3. Rear - right (RR)4. Front - left (FL)5. MC26. MC17. ESC Control unit (HECU) connector8. Bracket - Removal 1.Disconnect the battery ...

    Front Wheel Speed Sensor
    - Components 1. Front wheel speed sensor2. Front wheel speed sensor connector - Removal 1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported. 2.Rem ...
