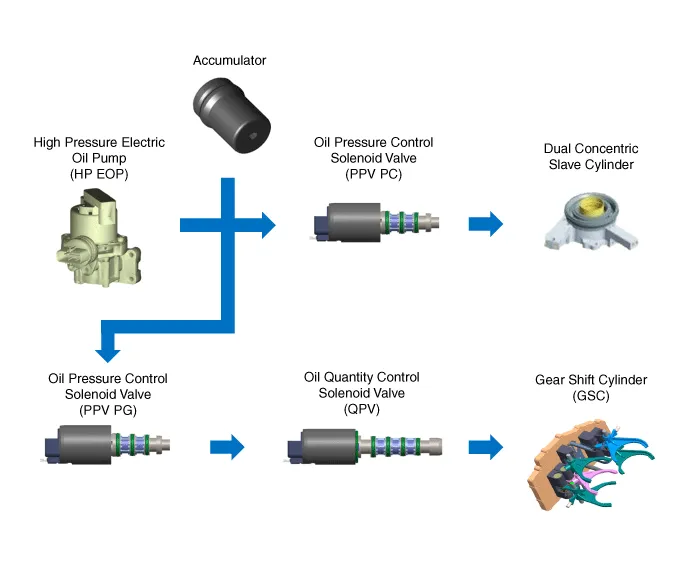

Hyundai Santa Cruz: Hydraulic System / Flow Diagram

Hydraulic System

...

Dual Clutch Transmission Control Fluid

- Components and Components Location 1. Filler plug2. Filler plug gasket3. Drain plug gasket4. Drain plug - Inspection     • If possible, use a 4-post lift (A) to mainta ...
