Hyundai Santa Cruz: Driving Safety / Forward Collision–Avoidance Assist (FCA) (Front view camera only)

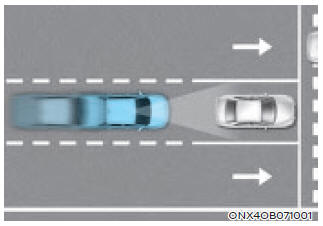

Forward Collision Avoidance Assist is designed to help detect and monitor a vehicle on the roadway ahead or help detect if a pedestrian or cyclist is in the roadway. Forward Collision Avoidance Assist will warn the driver with an audible warning and a message in the LCD cluster if it determines that a collision is imminent. In certain cases, emergency braking may be applied.

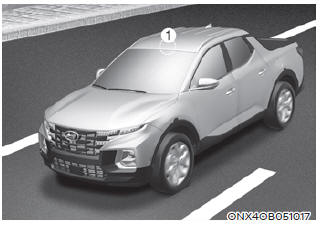

Detecting sensor

[1] : Front view camera

Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Take the following precautions to maintain optimal performance of the detecting sensor:

  • NEVER disassemble the detecting sensor or sensor assembly, or cause any damage to it.
  • If the detecting sensor has been replaced or repaired, have your vehicle inspected by an authorized HYUNDAI dealer.
  • NEVER install any accessories or stickers on the front windshield, or tint the front windshield.
  • Pay extreme caution to keep the front view camera dry.
  • NEVER place any reflective objects (for example, white paper, mirror) over the dashboard.
Driving Safety
...

Forward Collision-Avoidance Assist Settings
Setting features Forward Safety With the engine on, select or deselect 'Driver Assistance > Forward Safety' from the Settings menu to set whether to use each function. - If ‘Active Assist’ ...
