Hyundai Santa Cruz: Forward Collision–Avoidance Assist (FCA) (Front view camera only) / Forward Collision-Avoidance Assist Settings

Setting features

Forward Safety

With the engine on, select or deselect 'Driver Assistance > Forward Safety' from the Settings menu to set whether to use each function.

- If ‘Active Assist’ is selected, Forward Collision-Avoidance Assist warns the driver with a warning message and an audible warning depending on the collision risk levels. Braking assist is applied depending on the collision risk levels.
- If ‘Warning Only’ is selected, Forward Collision-Avoidance Assist warns the driver with a warning message and an audible warning depending on the collision risk levels. Braking is not assisted. The driver must apply the brake pedal if necessary.
- If ‘Off’ is selected, Forward Collision- Avoidance Assist turns off. The warning light illuminates on the cluster.

The driver can monitor Forward Collision-Avoidance Assist On/Off status from the Settings menu. If the warning light remains on when Forward Collision-Avoidance Assist is on, have the vehicle inspected by an authorized HYUNDAI dealer.

WARNING

When the engine is restarted, Forward Collision-Avoidance Assist will always turn on. However, if 'Off' is selected after the engine is restarted, note that Forward Collision Avoidance will not be active. The driver must take extra precaution while driving and always be aware of the vehicle surroundings.

CAUTION

If ‘Warning Only’ is selected, braking is not assisted.

InformationForward Collision-Avoidance Assist will turn off when ESC is turned off by pressing and holding the ESC OFF button. The warning light illuminates on the cluster.

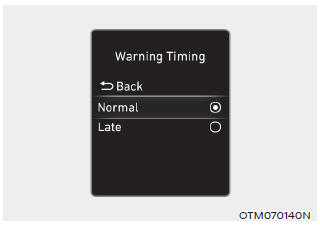

Warning Timing

With the engine on, select 'Driver Assistance > Warning Timing' from the Settings menu to change the initial warning activation time for Forward Collision-Avoidance Assist.

When the vehicle is first delivered, the Warning Timing is set to ‘Normal’. If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.

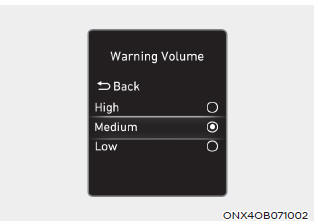

Warning Volume

With the engine on, select 'Driver Assistance > Warning Volume' from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Forward Collision-Avoidance Assist.

If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.

CAUTION

  • The setting of the Warning Timing and Warning Volume applies to all functions of Forward Collision- Avoidance Assist.
  • Even though, ‘Normal’ is selected for Warning Timing if the front vehicle suddenly stops, the warning may seem late.
  • Select ‘Late’ for Warning Timing when traffic is light and when driving speed is slow.

Information

If the engine is restarted, Warning Timing and Warning Volume will maintain the last setting.
