Hyundai Santa Cruz: Light Bulbs / Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL) Replacement

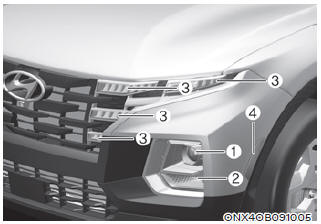

Type A (bulb)

(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Daytime running light/ Position light
(4) Side marker

Headlamp / Turn signal lamp

1. Engage the parking brake anddisconnect the negative battery cable

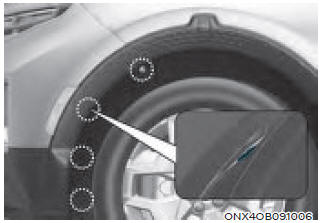

2. Remove wheel guard clips (under thefront bumper : 4 pieces).

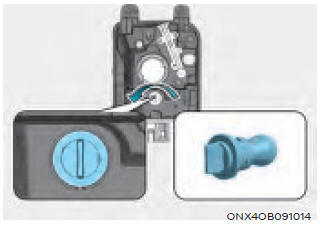

3. Push the wheel guard aside and remove the bulb socket by turning it counterclockwise.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Push the socket into the assembly and turn the socket clockwise.

7. Install the wheel guard in the reverse order.

Daytime running light, position light, Side Marker (LED)

If the LED lamp does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps have to be replaced with the unit. A skilled technici an should check or repair the LED lamp, for it may damage related parts of the vehicle.

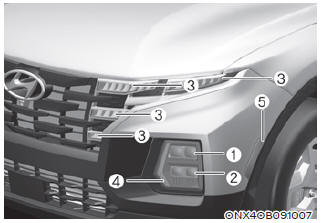

Type B (LED)

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker

If the LED lamp does not operate,have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

    Light Bulbs
    Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to th ...

    Side Repeater Lamp Replacement
    If the LED lamp (1) does not operate, have the system be inspected by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lam ...
